KTH5502
phone 0755-2810 2601
High‑Precision 3D Hall Magnetic Angle Sensor
Brand: KunTaiXin
Wide Operating Voltage: 1.7V ∼ 3.6V
Wide Temperature Range: -40°C ∼ +125°C
Low Power Consumption: Typical operating current 4‑6 mA
Multiple Interfaces: I²C, SPI, AB quadrature encoder, PWM, analog voltage
Maximum Supported Rotational Speed: 5000 RPM
Maximum Resolution of AB Quadrature Encoder Output: 1024 lines per revolution
Available Packages: SOP‑8L and DFN2×2‑8L
Applications: Absolute‑angle position detection, BLDC motor control, stepper motor control, gimbal motor control, robot joint motors, industrial knobs and control panels, joysticks and game controllers, steering‑angle sensors, valve opening detection, replacement for traditional optical encoders
Consult Now Download Sheet
Product Description

Chip Overview

The KTH5502 is a high‑precision absolute angle sensor chip based on vertical Hall technology, supporting full‑range (0‑360°) angle measurement. Internally integrated with X‑ and Y‑axis vertical Hall elements as well as a Z‑axis planar Hall element, the chip can simultaneously sense magnetic‑field variations along the X, Y and Z axes.

Benefiting from the excellent orthogonality matching performance, low‑offset design and high‑performance signal chain of vertical Hall technology, the KTH5502 converts magnetic‑field signals into digital signals via on‑chip high‑precision amplifier circuits and a 16‑bit ADC. Combined with dedicated algorithm processing, it delivers high‑resolution absolute‑angle output in the XY plane.

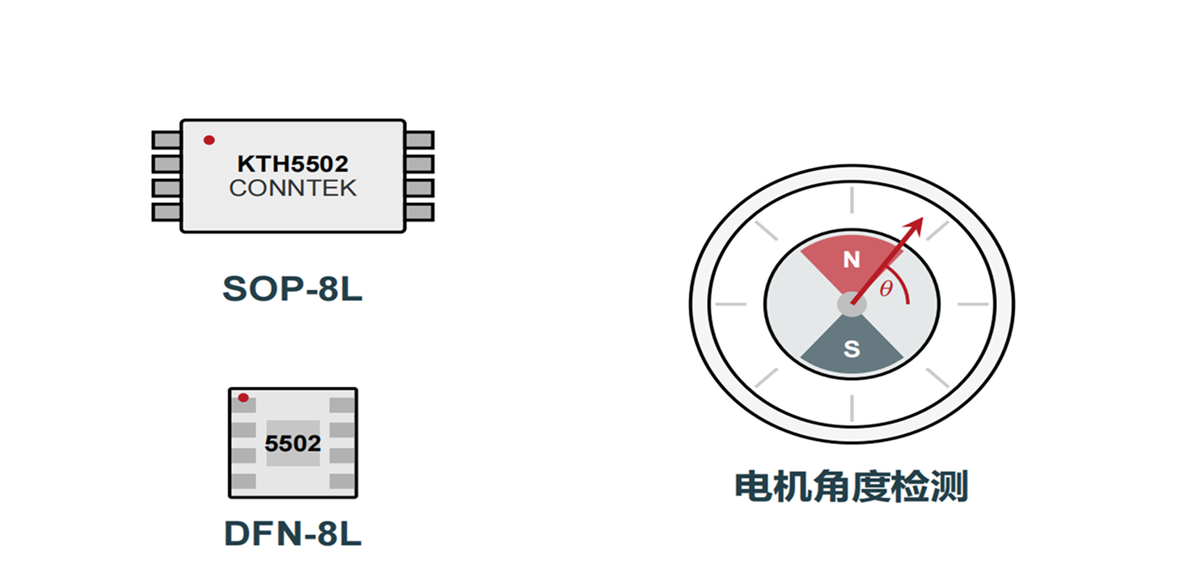

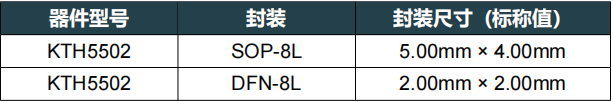

Package:

Applications

• Absolute‑angle position detection

• BLDC / stepper / gimbal motor control

• Robot joint motors

• Industrial knobs and control panels

• Joysticks and game controllers

• Steering‑angle sensors

• Valve opening detection

• Replacement for traditional optical encoders


Product Features

• High‑precision vertical Hall technology, supports full‑range (0‑360°) angle measurement

• Absolute‑angle output with 16‑bit resolution

• Wide operating voltage: 1.7V ∼ 3.6V

• Wide temperature range: -40°C ∼ +125°C

• Low power consumption: Typical operating current 4‑6 mA

• Comprehensive interfaces: I²C, SPI, AB quadrature encoder, PWM, analog voltage

• Maximum supported rotational speed: 5000 RPM

• AB quadrature encoder output up to 1024 lines per revolution

• Available in SOP‑8L and DFN2×2‑8L packages
