GXA535
phone 189 2646 8515
16-bit I/O Expander for I²C Bus
Brand: Zhongke Yinhexin (Zhongke Galaxy Core)
Direct replacement for xCA9535
Supply voltage: 1.6V ~ 5.5V
Operating temperature: -55°C ~ +125°C
Standby current: 0.5μA
Applications: Servers / Communication cabinets / Industrial automation equipment / Products with limited processor GPIO pins
Consult Now Download Sheet
Product Description

Introduction to GXA535

GXA535 is mainly used for expanding general-purpose input/output (GPIO) ports. Port data is transmitted via the standard two-wire I²C protocol, supporting a maximum communication rate of 1MHz (up to 2MHz when the high-speed mode is enabled).


GXA535 features 16 push-pull GPIO ports, all of which can directly drive LED components. Each bit of the GPIO ports can be independently configured as input or output mode, with the default mode being input upon power-on.

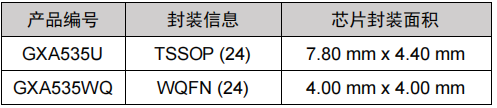

Package Information:

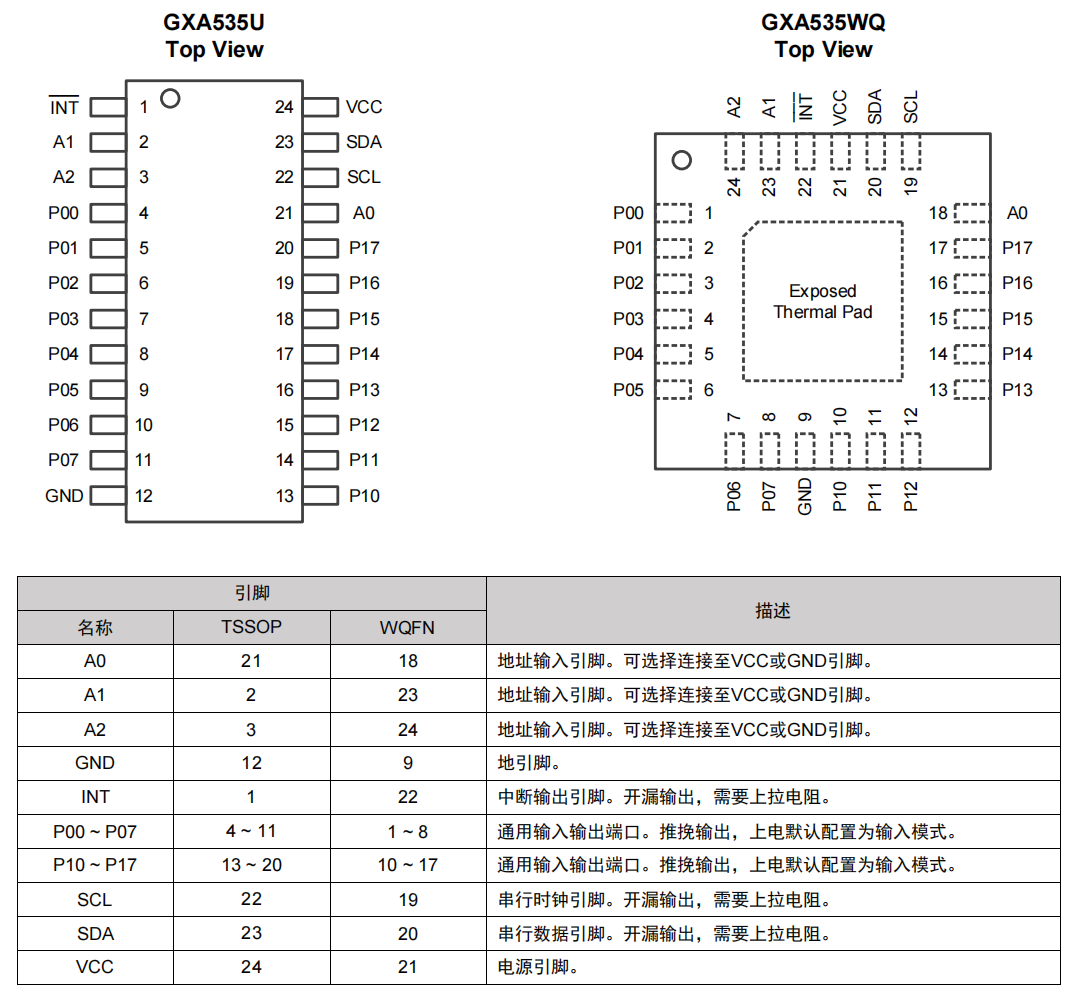

Pinout and Description of GXA535：



Chip Applications:

  • Servers

  • Communication cabinets

  • Industrial automation equipment

  • Products with limited processor GPIO pins


Product Features

  • Direct replacement for xCA9535

  • Supply voltage: 1.6V ~ 5.5V

  • Operating temperature: -55°C ~ +125°C

  • Standby current: 0.5μA

  • Directly drive LEDs

  • Open-drain output interrupt pin
