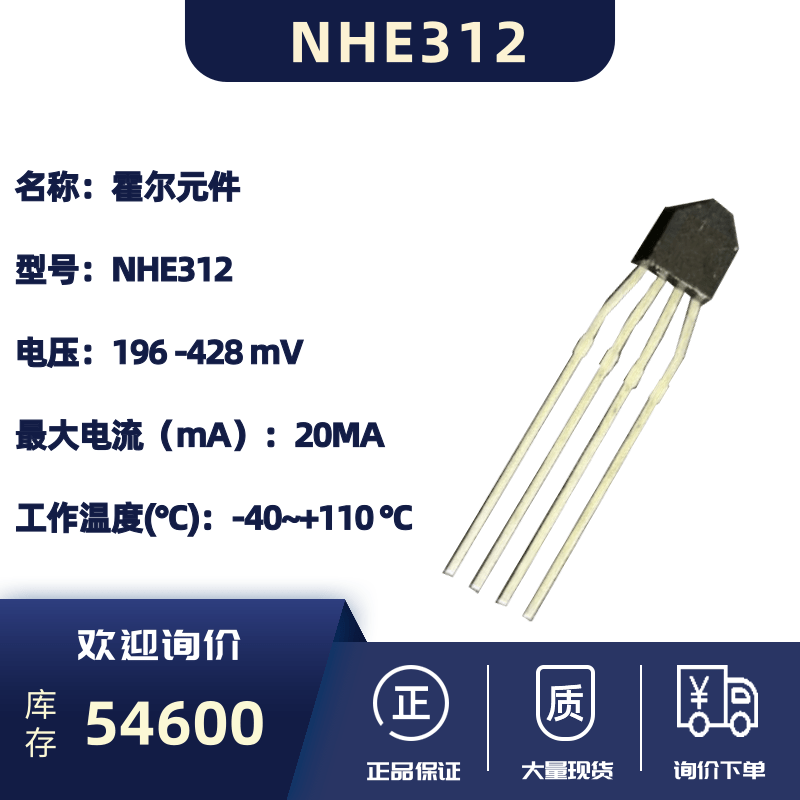

Hall Element-NHE312

Location: Home Products Center Magnetic Sensor Chips Hall Element

NHE312

0755-2810 2601

Hall Element
Brand: Nissela
Voltage: 196-428mV
Maximum Current: 20mA
Operating Temperature: -40~+110°C
Applications: Brushless Motors, Position/Rotation Sensors, Current Sensors, Magnetic Field Strength Meters, Magnetic Card Identification Modules, Non-Contact Switches, etc.

Consult Now Download Sheet

Application Scenarios

位置传感器

电流传感器

Recommended Products

SC4011

小型、经济型线性霍尔传感器芯片品牌：赛卓电压：5.0V-30V 工作温度：-40℃~105℃ 封装：3-pin SIP/ SOT23 应用：电机控制/位置检测/电流检测/称重及液位检测

LD8221

性霍尔效应传感器IC 品牌：乐业达工作电压范围：2.7-5.5V ESD：±4KV 工作温度范围：-40℃ ~ +125℃ 封装：SOT23-5L 符合 RoHS 标准：（EU）2015/863 应用：电流传感、电机控制、位置传感、三模可调行程磁轴键盘等

LD8222

高灵敏度双极霍尔效应传感器IC 品牌：乐业达工作电压：2.7V～5.5V 典型工作电流：3.3V，4.0mA；5.0V，5.5mA 温度：-40℃～125℃ 封装：SOT23-3L,SOT23,TO-92S 和DFN1616-6L 应用：电流传感器、电机控制、位置传感器、含铁金属探测仪、称重及液位检测仪、旋转编码器

LD8223

高灵敏度线性霍尔效应传感器芯片品牌：乐业达工作电压：1.7～5.5 V 低功耗电流：ICC=800μA @ VCC=1.8V 工作温度：-40℃～125℃ 封装：SOT23-3L 应用：游戏手柄摇杆、位置检测、接近检测、耳机仓位检测、磁栅尺应用

MG610

GaAs Hall Element (Matrix Brand) Brand: Matrix Operating Temperature Range: -40℃ ~ 125℃ Storage Temperature Range: -40℃ ~ 150℃ Maximum Input Current: 13 mA Thin Profile Similar Sensitivity Similar Offset Voltage Similar Temperature Stability High Offset Voltage Stability

KTH31XX

Brand: Kuntai Chip Wide operating voltage range: 3.0V ~ 5.5V Low power consumption: 4.5mA at VDD = 3.3V 5.4mA at VDD = 5.0V High-speed bandwidth up to 30kHz Package Types: SOT23, TO-92S, DFN1616 Operating temperature range: -40℃ ~ 125℃

Product Description

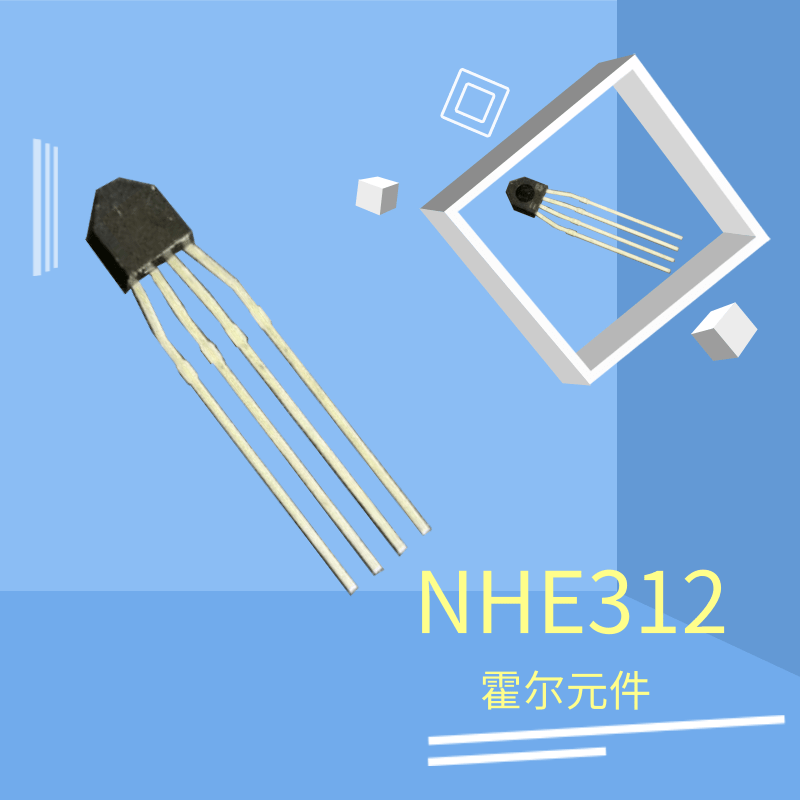

Overview of NHE312

The NHE312 is a high-sensitivity indium antimonide (InSb) thin-film Hall element, specifically designed for precise sensing applications in low magnetic fields. Its core advantage lies in high sensitivity: under the conditions of 1V constant voltage drive and 50mT magnetic field, the output voltage VH ranges from 196~428mV, enabling accurate capture of weak magnetic field changes. Meanwhile, the zero-magnetic-field offset voltage is only ±7mV, ensuring high signal purity without the need for complex compensation circuits.

The NHE312 features an input and output resistance of 240~550Ω, perfectly compatible with transistor circuits. It supports 1V constant voltage or 1mA constant current drive, with a maximum input current of 20mA (at 25℃) and strong adaptability. Encased in a Sip-type 4-pin package, it offers easy soldering and vibration resistance. The operating temperature range is -40℃~110℃, and the storage temperature range is -40℃~125℃, making it suitable for harsh environments such as industrial and automotive applications, with a stable temperature drift coefficient (VH temperature coefficient: -1.8%/℃).

In addition, the NHE312 is available in a lead-free version and the NHE312-HF lead-free and halogen-free version, complying with environmental standards. It is classified into 4~9 grades (168~428mV) based on output voltage, allowing selection according to specific requirements. The packaging options are 1000 units/bag and 30000 units/carton, adapting to mass production. It is widely used in brushless motors, position/rotation sensors, current sensors, and various low-magnetic-field flux detection scenarios.

Parameters：

Features：

NHE312 Applications:

Brushless Motors
Position/Rotation Sensors
Current Sensors
Magnetic Field Strength Meters
Magnetic Card Identification Modules
Non-Contact Switches, etc.

Product Features

Key Features & Advantages

High Sensitivity for Low Magnetic Fields
Adopting evaporated indium antimonide (InSb) thin-film technology, this Hall element boasts high sensitivity. Under conditions of 1V constant voltage drive and 50mT magnetic field, the output voltage VH ranges from 196~428mV, enabling precise response to low magnetic field changes. The offset voltage Vo at zero magnetic field is only ±7mV, ensuring minimal signal interference without the need for complex compensation circuits.
Excellent Electrical Compatibility
Both input resistance (Rin) and output resistance (Rout) are 240~550Ω, perfectly compatible with transistor circuits. It supports 1V constant voltage or 1mA constant current drive, with a maximum input current of 20mA (at 25℃). Compatible with mainstream drive solutions, no additional matching resistors are required during integration.
Multi-Grade Options & Environmental Compliance
Classified into 4~9 grades (168~428mV) based on output voltage VH, it allows flexible selection according to magnetic field intensity and precision requirements. Available in standard lead-free version and NHE312-HF lead-free & halogen-free version, it meets environmental regulations in different regions and supports customization for bulk purchases.
Wide Temperature Stability & Rugged Packaging
Operating temperature ranges from -40~110℃, and storage temperature from -40~125℃, adapting to harsh environments. With stable temperature drift performance (VH temperature coefficient αHI: -1.8%/℃; Rin temperature coefficient αR: -1.8%/℃), it ensures reliable operation across temperature variations. Encased in a Sip-type 4-pin package, it features vibration resistance and easy soldering, suitable for multi-scenario installation needs.

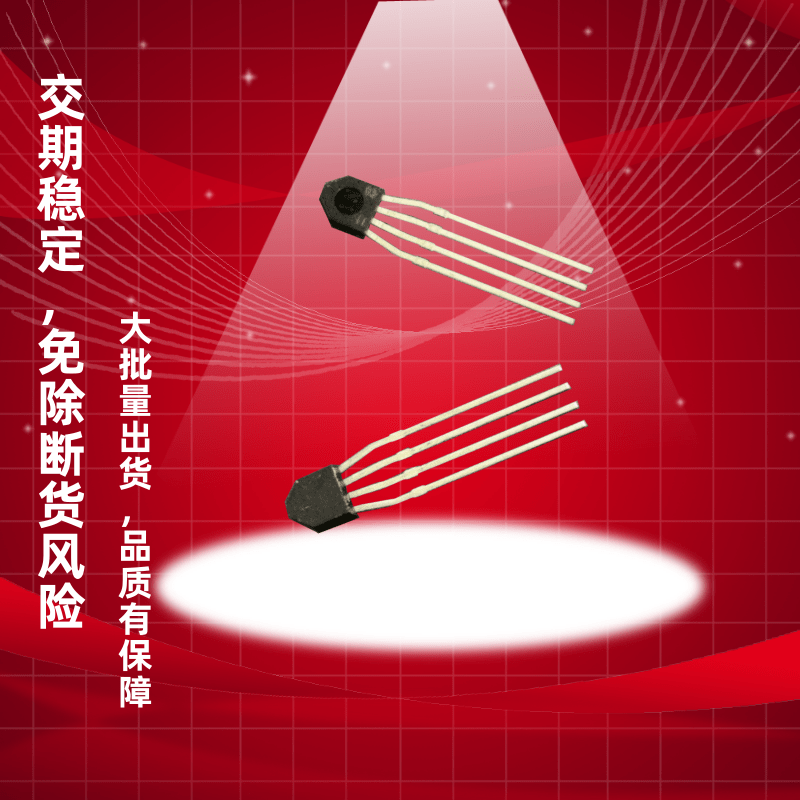

Mature Packaging & Stable Supply Chain
Supplied in bulk packaging: 1000 units/bag and 30000 units/carton, compatible with automated SMT assembly and mass production. The stable supply chain can meet the demands of large-scale projects.
