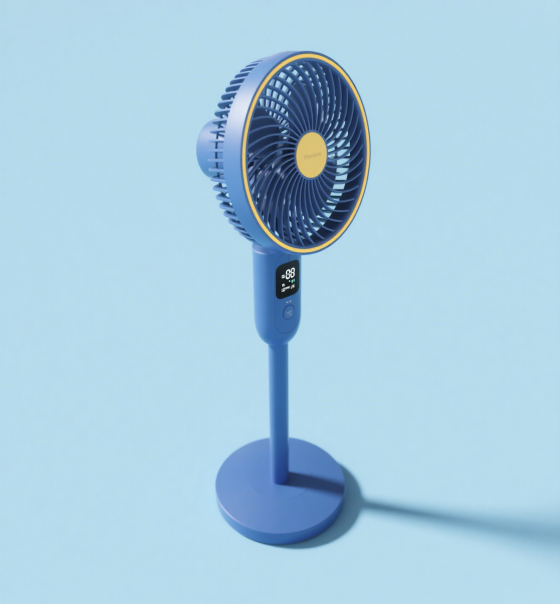

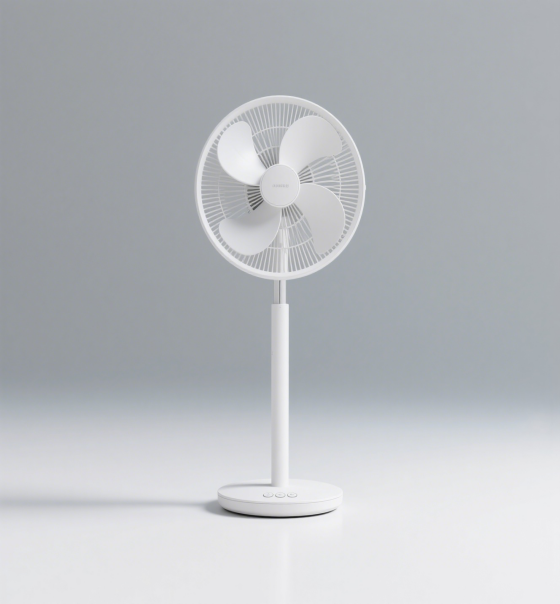

落地扇方案
电机驱动1C：XM2616
MCU：LCP037AH31ES8 (SSOP-24+集成NP预驱)
霍尔IC：SC2402(有感)
MOS管：NCE4614
电压范围：DC 24V/12V
转速范围：200~1500 r/min
功率范围：3-30 W
控制方式：单/双电阻无感FOC+无级调速+摇头电机
方案优势：高低温快速闭环启动自适应、噪声低、成本低、顺/逆风启动
Debugging Video
Large Home Appliances
Air Conditioner Indoor Motor
Automobiles
Power Tools
Electric Scissors Motor Controller
Fascia Gun
Electric Scissors Motor Blade Controller
Small Home Appliances
Pedestal Fan
Robot Vacuum Cleaner
Walking Motor of Industrial Robot Vacuum Cleaner Suction Motor of Robot Vacuum Cleaner Side Brush Motor of Robot Vacuum Cleaner
Vacuum Cleaner Motor
Consumer Category
Magnetic Axis Keyboard
Industry
Solution Overview Scheme Diagram Experimental Results Application Package Technical Articles
Solution Overview
主控芯片：LCP037AH31ES8 （SSOP-24+集成NP预驱）
电压范围：DC 24 V
转速范围：200 ~ 1500 r/min
功率范围：3~30 W
控制方式：双电阻无感FOC+无级调速+摇头电机
方案优势：高低温快速闭环启动自适应 、噪声低、成本低、顺/逆风启动
Scheme Diagram
icon


Experimental Results
icon
case_desc_img1
静止启动
case_desc_img2
顺风启动电流波形
