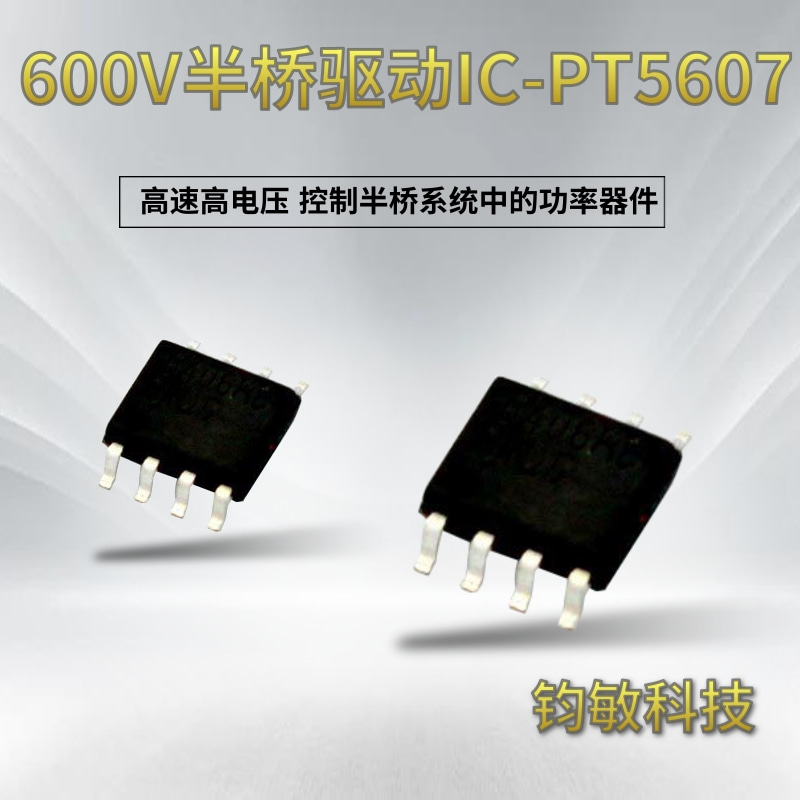

PT5607
phone 189 2646 8515
600V Gate Driver IC

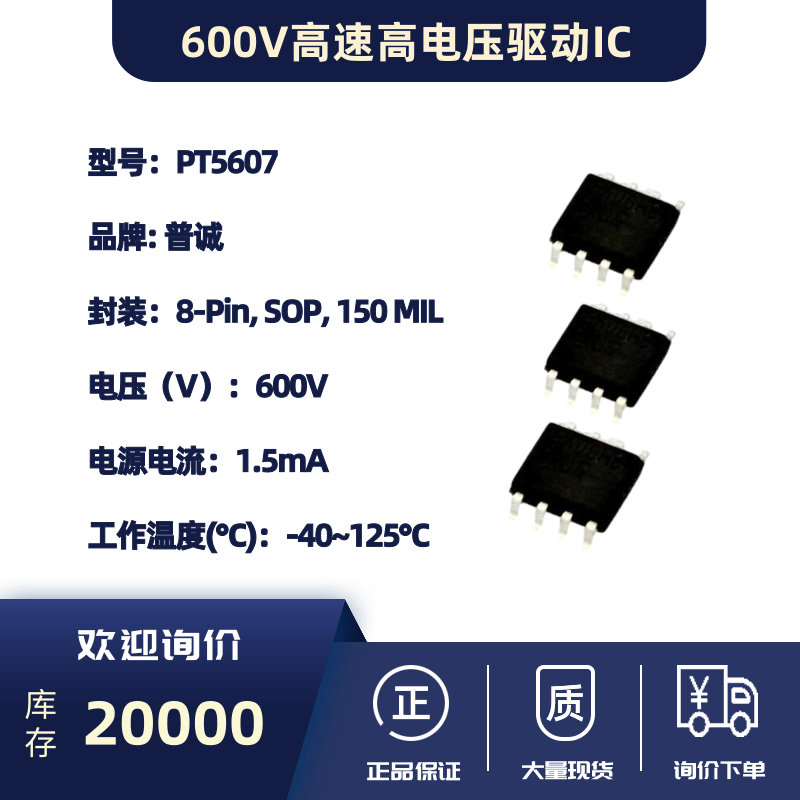

Brand: Princeton Technology Corp.
Voltage (V): 600V
Supply Current: 1.5mA
Operating Temperature (℃): -40~125℃

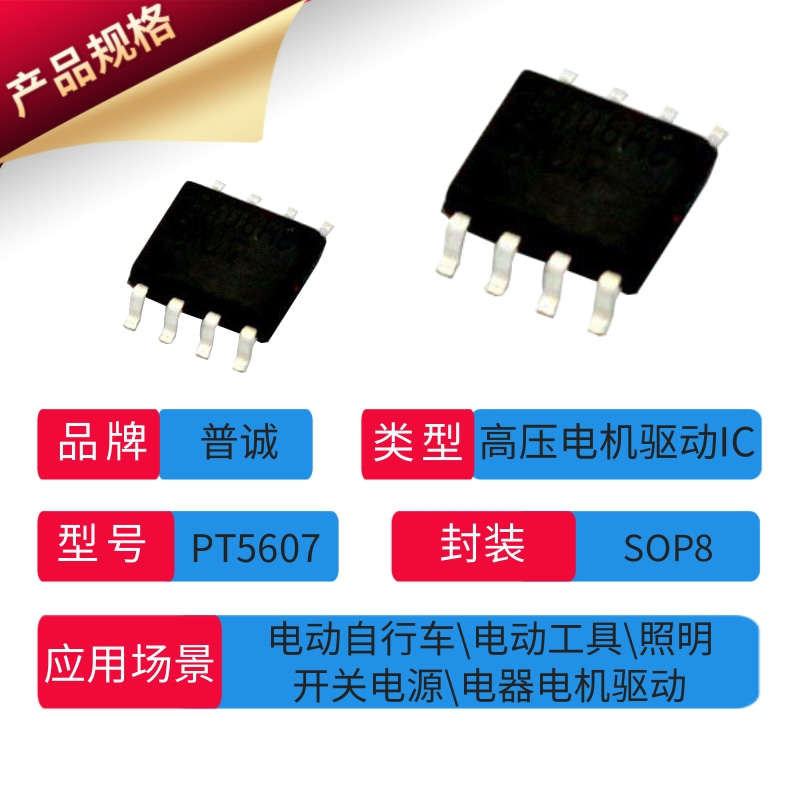

Package: 8-Pin, SOP (Small Outline Package), 150 mil
Applications: PMSM (Permanent Magnet Synchronous Motor) & BLDC (Brushless DC Motor) Drives, General-Purpose Inverters, Electric Bicycles, Power Tools, Lighting, Switching Power Supplies
Consult Now Download Sheet
Application Scenarios
微型逆变器 微型逆变器
微型逆变器
电剪刀电机刀口控制器 电剪刀电机刀口控制器
电剪刀电机刀口控制器
电剪刀电机控制器 电剪刀电机控制器
电剪刀电机控制器
电动自行车 电动自行车
电动自行车
Recommended Products
GC1868
高精度、快响应、高带宽、隔离型集成式电流传感芯片 品牌：矩阵 电流检测：0~50A 典型零点温漂：±2mV 典型灵敏度温漂：±0.5% 典型线性度误差：±0.1% 封装：SOIC-8 应用：微型逆变器、电源、电机控制、储能（双向变流器“PCS”）、便携式储能设备、变频器、充电桩(充电桩电源模块)、光伏（最大功率跟踪“MPPT”交流并网）
PT5619
90V Half-Bridge Gate Driver IC Brand: Pucheng Compatible with three logic levels: 3.3V, 5V, 15V Sink/source current: 1200mA/2000mA Operating temperature: -40℃ to 125℃ Small-size packages: TSSOP20L/24L, QFN24 Applications: Power tools: Electric drills, electric saws, angle grinders, etc. Home appliance field: Three-phase motor drive for air conditioners and washing machines; strong anti-interference capability ensures stable operation of home appliances. New energy products: Balance bikes, electric scooters, small energy storage inverters; low-power consumption adapts to battery-powered scenarios, and wide-temperature design copes with outdoor environments. Industrial control: Three-phase servo motor drive and industrial inverters; stable operation in complex industrial environments, reducing equipment failures.
PT5639
100V Three-Phase Gate Driver IC Model: PT5639 Brand: Princeton Technology Voltage Range: 0~5.5V Core Features: Built-in PNMOS Pre-driver; Integrated 100V Half-Bridge High-Side Driver; Capable of driving up to 3-phase half-bridge gates Built-in Dead Time: 0.25μs (Typ.) Operating Temperature Range: -40℃ to 125℃ Small-Footprint Packages: TSSOP20L/24L/QFN Applications: Three-Phase Motor Driver | E-BIKE/Electric Power Tools/Battery-Powered Mini/Micro Motor Control/General-Purpose Inverter
SC2466
霍尔IC 品牌：赛卓 电压：2.5V~24V 工作温度：-40℃~150℃ 封装：SIP/SOT23-3 应用：电剪刀电机刀口控制器、流量计、磁性编码、近程感应、车门遥控器、电动推拉门、天窗电机、电剪刀
PT3621A
单极霍尔开关 品牌：旺玖 工作电压：2.5V~18V 峰值电流：25mA 工作温度：-40°C-150°C 封装：TO-92/SOT-23 应用：电剪刀刀口位置检测 、盖探测器、速度测量、家用电器、家庭安全、VCD/DVD加载器、CD/DVD Rom、扫地机器人（尘盒位置检测）
PT5619
90V Half-Bridge Gate Driver IC Brand: Pucheng Compatible with three logic levels: 3.3V, 5V, 15V Sink/source current: 1200mA/2000mA Operating temperature: -40℃ to 125℃ Small-size packages: TSSOP20L/24L, QFN24 Applications: Power tools: Electric drills, electric saws, angle grinders, etc. Home appliance field: Three-phase motor drive for air conditioners and washing machines; strong anti-interference capability ensures stable operation of home appliances. New energy products: Balance bikes, electric scooters, small energy storage inverters; low-power consumption adapts to battery-powered scenarios, and wide-temperature design copes with outdoor environments. Industrial control: Three-phase servo motor drive and industrial inverters; stable operation in complex industrial environments, reducing equipment failures.
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
PT5639
100V Three-Phase Gate Driver IC Model: PT5639 Brand: Princeton Technology Voltage Range: 0~5.5V Core Features: Built-in PNMOS Pre-driver; Integrated 100V Half-Bridge High-Side Driver; Capable of driving up to 3-phase half-bridge gates Built-in Dead Time: 0.25μs (Typ.) Operating Temperature Range: -40℃ to 125℃ Small-Footprint Packages: TSSOP20L/24L/QFN Applications: Three-Phase Motor Driver | E-BIKE/Electric Power Tools/Battery-Powered Mini/Micro Motor Control/General-Purpose Inverter
SC2466
霍尔IC 品牌：赛卓 电压：2.5V~24V 工作温度：-40℃~150℃ 封装：SIP/SOT23-3 应用：电剪刀电机刀口控制器、流量计、磁性编码、近程感应、车门遥控器、电动推拉门、天窗电机、电剪刀
PT5619
90V Half-Bridge Gate Driver IC Brand: Pucheng Compatible with three logic levels: 3.3V, 5V, 15V Sink/source current: 1200mA/2000mA Operating temperature: -40℃ to 125℃ Small-size packages: TSSOP20L/24L, QFN24 Applications: Power tools: Electric drills, electric saws, angle grinders, etc. Home appliance field: Three-phase motor drive for air conditioners and washing machines; strong anti-interference capability ensures stable operation of home appliances. New energy products: Balance bikes, electric scooters, small energy storage inverters; low-power consumption adapts to battery-powered scenarios, and wide-temperature design copes with outdoor environments. Industrial control: Three-phase servo motor drive and industrial inverters; stable operation in complex industrial environments, reducing equipment failures.
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
PT5639
100V Three-Phase Gate Driver IC Model: PT5639 Brand: Princeton Technology Voltage Range: 0~5.5V Core Features: Built-in PNMOS Pre-driver; Integrated 100V Half-Bridge High-Side Driver; Capable of driving up to 3-phase half-bridge gates Built-in Dead Time: 0.25μs (Typ.) Operating Temperature Range: -40℃ to 125℃ Small-Footprint Packages: TSSOP20L/24L/QFN Applications: Three-Phase Motor Driver | E-BIKE/Electric Power Tools/Battery-Powered Mini/Micro Motor Control/General-Purpose Inverter
PT5639
100V Three-Phase Gate Driver IC Model: PT5639 Brand: Princeton Technology Voltage Range: 0~5.5V Core Features: Built-in PNMOS Pre-driver; Integrated 100V Half-Bridge High-Side Driver; Capable of driving up to 3-phase half-bridge gates Built-in Dead Time: 0.25μs (Typ.) Operating Temperature Range: -40℃ to 125℃ Small-Footprint Packages: TSSOP20L/24L/QFN Applications: Three-Phase Motor Driver | E-BIKE/Electric Power Tools/Battery-Powered Mini/Micro Motor Control/General-Purpose Inverter
Product Description

Overview of PT5607

The PT5607 is a high-speed, high-voltage (600V) driver designed to control power devices such as MOS transistors or IGBTs in half-bridge systems with high-side and low-side referenced output channels. Its logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic.
The device integrates an undervoltage detection unit, which prevents excessive conduction losses in power devices when the gate voltage margin is insufficient. The output driver features a high-pulse current buffer stage, specifically designed to minimize driver cross-conduction.
The floating channel can be used to drive N-channel power MOSFETs or IGBTs, operating in high-side configurations up to 600V.


PT5607 Functional Block Diagram：


PT5607 Application Circuit：



PT5607 Applications：

  • PMSM (Permanent Magnet Synchronous Motor) & BLDC (Brushless DC Motor) Drives

  • General-Purpose Inverters

  • Electric Bicycles

  • Power Tools

  • Lighting, Switching Power Supplies



Product Features

PT5607 Key Specifications & Features

  • Drives two IGBT/MOSFET power devices

  • High-side channel fully operates up to +600V

  • Gate drive supply voltage: 10V to 20V per channel

  • Undervoltage Lockout (UVLO)

  • Advanced input filter

  • Built-in dead-time protection: 0.5μs

  • IO+/-: 290/620mA

  • Protection against simultaneous high-side and low-side conduction

  • Compatible with 3.3V / 5V / 15V input logic

  • Matched propagation delay across all channels

  • Matched dead-time

  • Phase high-side output with HIN input

  • Phase low-side output with LIN input

  • Negative transient voltage tolerance, dv/dt immunity up to 50V/ns

  • Low di/dt gate driver for enhanced noise immunity

  • Operating temperature range: -40°C to 125°C

  • Available in SOP8L package


Application Scenarios
