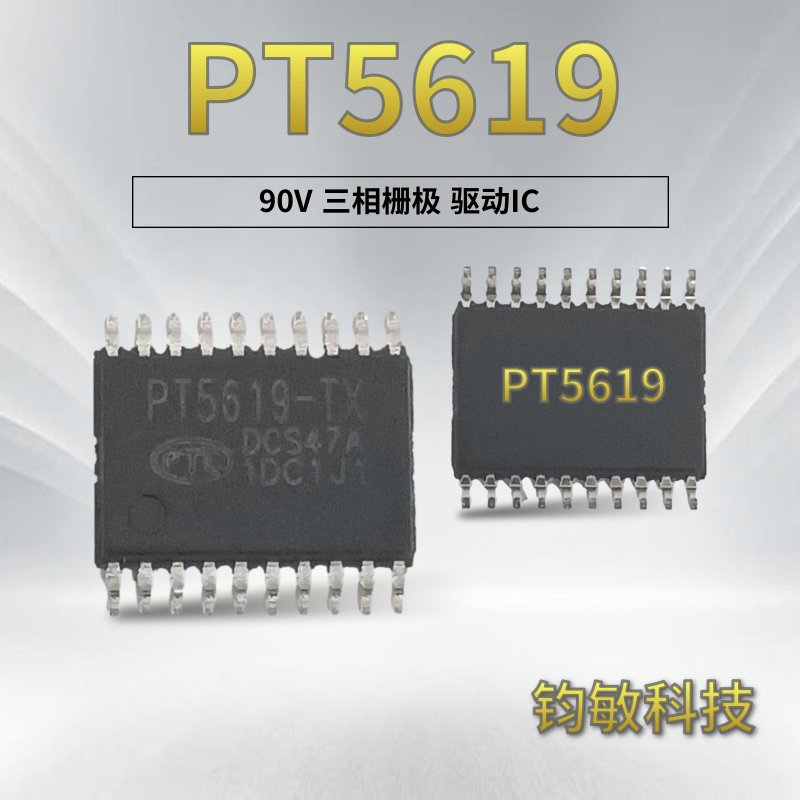

PT5619
phone 189 2646 8515

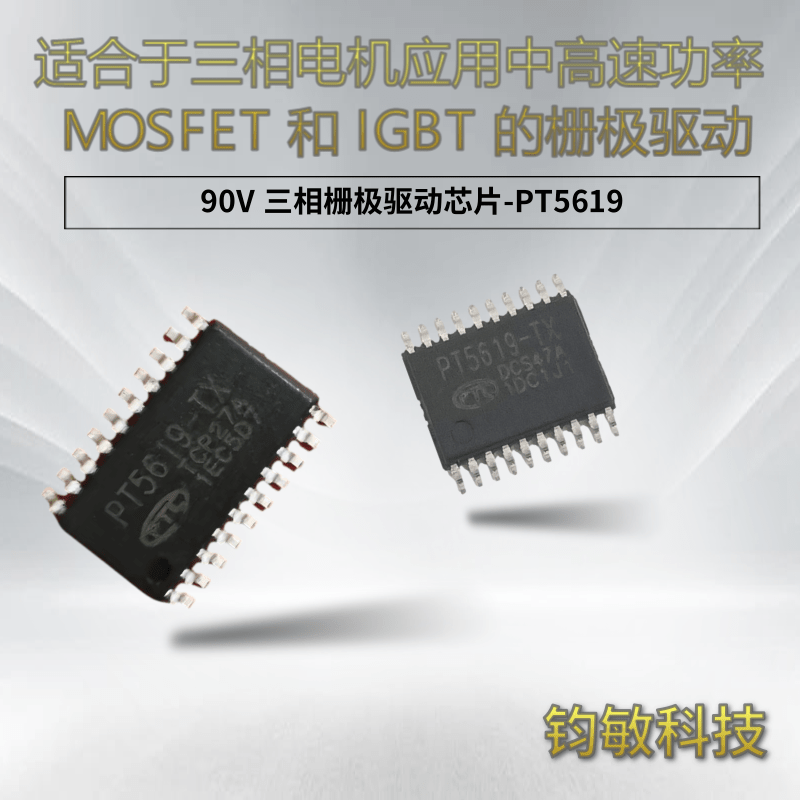

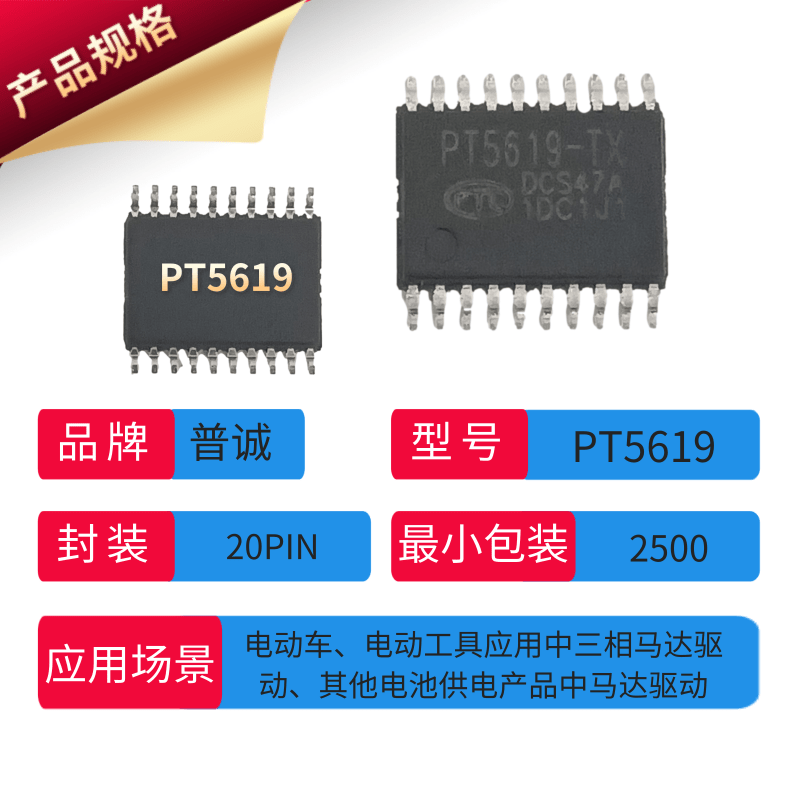

90V Half-Bridge Gate Driver IC
Brand: Pucheng
Compatible with three logic levels: 3.3V, 5V, 15V
Sink/source current: 1200mA/2000mA
Operating temperature: -40℃ to 125℃
Small-size packages: TSSOP20L/24L, QFN24
Applications:
Power tools: Electric drills, electric saws, angle grinders, etc.
Home appliance field: Three-phase motor drive for air conditioners and washing machines; strong anti-interference capability ensures stable operation of home appliances.
New energy products: Balance bikes, electric scooters, small energy storage inverters; low-power consumption adapts to battery-powered scenarios, and wide-temperature design copes with outdoor environments.
Industrial control: Three-phase servo motor drive and industrial inverters; stable operation in complex industrial environments, reducing equipment failures.
Consult Now Download Sheet
Application Scenarios
微型逆变器 微型逆变器
微型逆变器
电剪刀电机刀口控制器 电剪刀电机刀口控制器
电剪刀电机刀口控制器
电剪刀电机控制器 电剪刀电机控制器
电剪刀电机控制器
洗衣机水泵 洗衣机水泵
洗衣机水泵
空调排水泵 空调排水泵
空调排水泵
筋膜枪 筋膜枪
筋膜枪
Recommended Products
GC1868
高精度、快响应、高带宽、隔离型集成式电流传感芯片 品牌：矩阵 电流检测：0~50A 典型零点温漂：±2mV 典型灵敏度温漂：±0.5% 典型线性度误差：±0.1% 封装：SOIC-8 应用：微型逆变器、电源、电机控制、储能（双向变流器“PCS”）、便携式储能设备、变频器、充电桩(充电桩电源模块)、光伏（最大功率跟踪“MPPT”交流并网）
PT5607
600V Gate Driver IC Brand: Princeton Technology Corp. Voltage (V): 600V Supply Current: 1.5mA Operating Temperature (℃): -40~125℃ Package: 8-Pin, SOP (Small Outline Package), 150 mil Applications: PMSM (Permanent Magnet Synchronous Motor) & BLDC (Brushless DC Motor) Drives, General-Purpose Inverters, Electric Bicycles, Power Tools, Lighting, Switching Power Supplies
SC2466
霍尔IC 品牌：赛卓 电压：2.5V~24V 工作温度：-40℃~150℃ 封装：SIP/SOT23-3 应用：电剪刀电机刀口控制器、流量计、磁性编码、近程感应、车门遥控器、电动推拉门、天窗电机、电剪刀
PT3621A
单极霍尔开关 品牌：旺玖 工作电压：2.5V~18V 峰值电流：25mA 工作温度：-40°C-150°C 封装：TO-92/SOT-23 应用：电剪刀刀口位置检测 、盖探测器、速度测量、家用电器、家庭安全、VCD/DVD加载器、CD/DVD Rom、扫地机器人（尘盒位置检测）
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
PT5607
600V Gate Driver IC Brand: Princeton Technology Corp. Voltage (V): 600V Supply Current: 1.5mA Operating Temperature (℃): -40~125℃ Package: 8-Pin, SOP (Small Outline Package), 150 mil Applications: PMSM (Permanent Magnet Synchronous Motor) & BLDC (Brushless DC Motor) Drives, General-Purpose Inverters, Electric Bicycles, Power Tools, Lighting, Switching Power Supplies
SC2466
霍尔IC 品牌：赛卓 电压：2.5V~24V 工作温度：-40℃~150℃ 封装：SIP/SOT23-3 应用：电剪刀电机刀口控制器、流量计、磁性编码、近程感应、车门遥控器、电动推拉门、天窗电机、电剪刀
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
PT5607
600V Gate Driver IC Brand: Princeton Technology Corp. Voltage (V): 600V Supply Current: 1.5mA Operating Temperature (℃): -40~125℃ Package: 8-Pin, SOP (Small Outline Package), 150 mil Applications: PMSM (Permanent Magnet Synchronous Motor) & BLDC (Brushless DC Motor) Drives, General-Purpose Inverters, Electric Bicycles, Power Tools, Lighting, Switching Power Supplies
ZH5212
电机控制专用32位MCU 品牌：英能 电压：2.8V～5.5V 最高工作频率:96Mhz 工作温度：:-40℃～125℃ 封装：SOP24/QFN24 应用：落地扇、洗衣机水泵、智能马桶水泵
ZH6358
电机驱动IC 品牌：英能 电压：7V~32V 最大电流：150mA 工作温度：-40℃~150℃ 封装：ETSSOP24 应用：三相水冷显卡散热器、扫地机器人主吸电机、风扇、水泵、三相永磁同步电机
PT2513B
电机驱动IC 品牌：普诚 电压：6V ~ 16V 最大电流：1A 工作温度：-40℃~125℃ 封装：HTSSOP 产品应用：三相无传感器 BLDC 马达驱动、小型风扇、水泵、冰箱风机、空调水泵
ZH63582
高集成度三相FOC预驱驱动芯片 品牌：英能 工作电压：7V~32V 输出电流（外置 MOS）：20A 工作温度：-40°C-150°C 封装：ETSSOP24 和 QFN24 应用：风扇，水泵，除湿机，加湿器，空气净化器，新风系统 等低速电机应用
PT5616
Three-Phase 600V Gate Full-Bridge Driver IC Brand: Puchen Output Current: 200mA-400mA Operating Temperature: -40°C to 125°C Power Supply Voltage: 18V per channel Applications: Dough mixers (kneading machines), blenders, egg beaters, pet dryers, ceiling fans, floor fans, industrial fans, water pumps, treadmills, air conditioner indoor units, juicers, hair suckers, range hoods, fascia guns, etc.
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans， electronic cigarettes, sensor devices, etc.
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
ZH6358
电机驱动IC 品牌：英能 电压：7V~32V 最大电流：150mA 工作温度：-40℃~150℃ 封装：ETSSOP24 应用：三相水冷显卡散热器、扫地机器人主吸电机、风扇、水泵、三相永磁同步电机
PT2513B
电机驱动IC 品牌：普诚 电压：6V ~ 16V 最大电流：1A 工作温度：-40℃~125℃ 封装：HTSSOP 产品应用：三相无传感器 BLDC 马达驱动、小型风扇、水泵、冰箱风机、空调水泵
ZH63582
高集成度三相FOC预驱驱动芯片 品牌：英能 工作电压：7V~32V 输出电流（外置 MOS）：20A 工作温度：-40°C-150°C 封装：ETSSOP24 和 QFN24 应用：风扇，水泵，除湿机，加湿器，空气净化器，新风系统 等低速电机应用
PT5616
Three-Phase 600V Gate Full-Bridge Driver IC Brand: Puchen Output Current: 200mA-400mA Operating Temperature: -40°C to 125°C Power Supply Voltage: 18V per channel Applications: Dough mixers (kneading machines), blenders, egg beaters, pet dryers, ceiling fans, floor fans, industrial fans, water pumps, treadmills, air conditioner indoor units, juicers, hair suckers, range hoods, fascia guns, etc.
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans， electronic cigarettes, sensor devices, etc.
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
GC4931P
三相有感电机驱动IC 品牌：芯麦 电压(V):4.7~36V 最大电流(mA):MOS外置 工作温度(C):-40+150°C 封装:QFN28 应用：筋膜枪电机、扫地机器人电机、吸尘器电机、齿轮箱减速电机
Product Description

Chip Overview

:

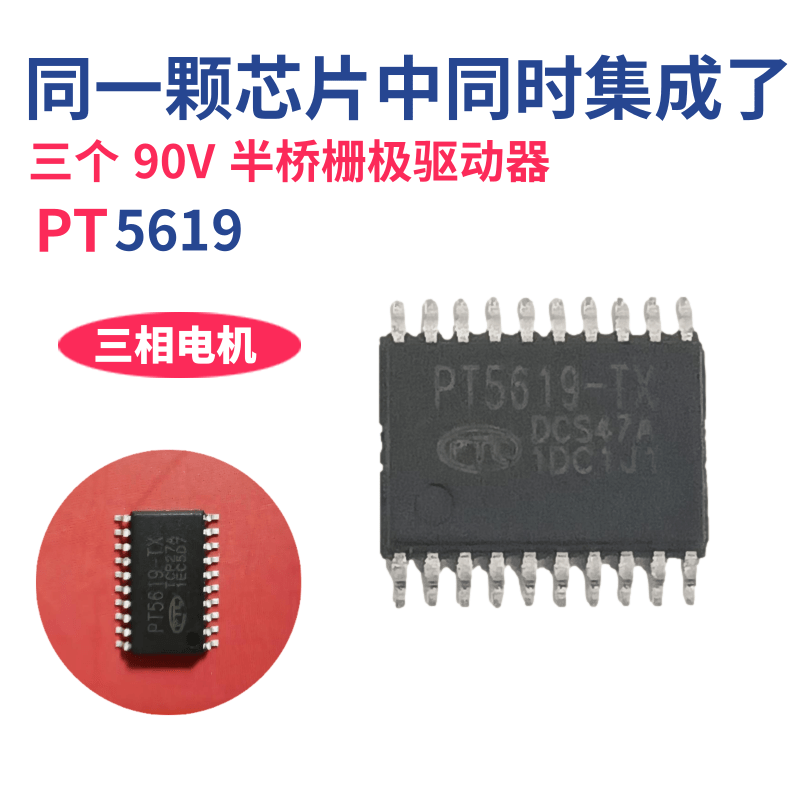

PT5619 integrates three 90V half-bridge gate drivers in a single chip, making it particularly suitable for driving high-speed power MOSFETs and IGBTs in three-phase motor applications. The chip features built-in dead-time control and cross-conduction protection for upper and lower switches, effectively preventing damage to half-bridge circuits. To avoid power device damage caused by the chip operating at low supply voltages, an internal undervoltage lockout (UVLO) circuit is integrated to prevent such issues.


Advanced high-voltage BCD process and built-in common-mode noise cancellation technology enable the high-side driver to operate stably in high dv/dt noise environments, while also providing the chip with a wide range of negative transient voltage tolerance. For extended battery life, the chip can enter a low-current standby mode via control of the ENB pin.

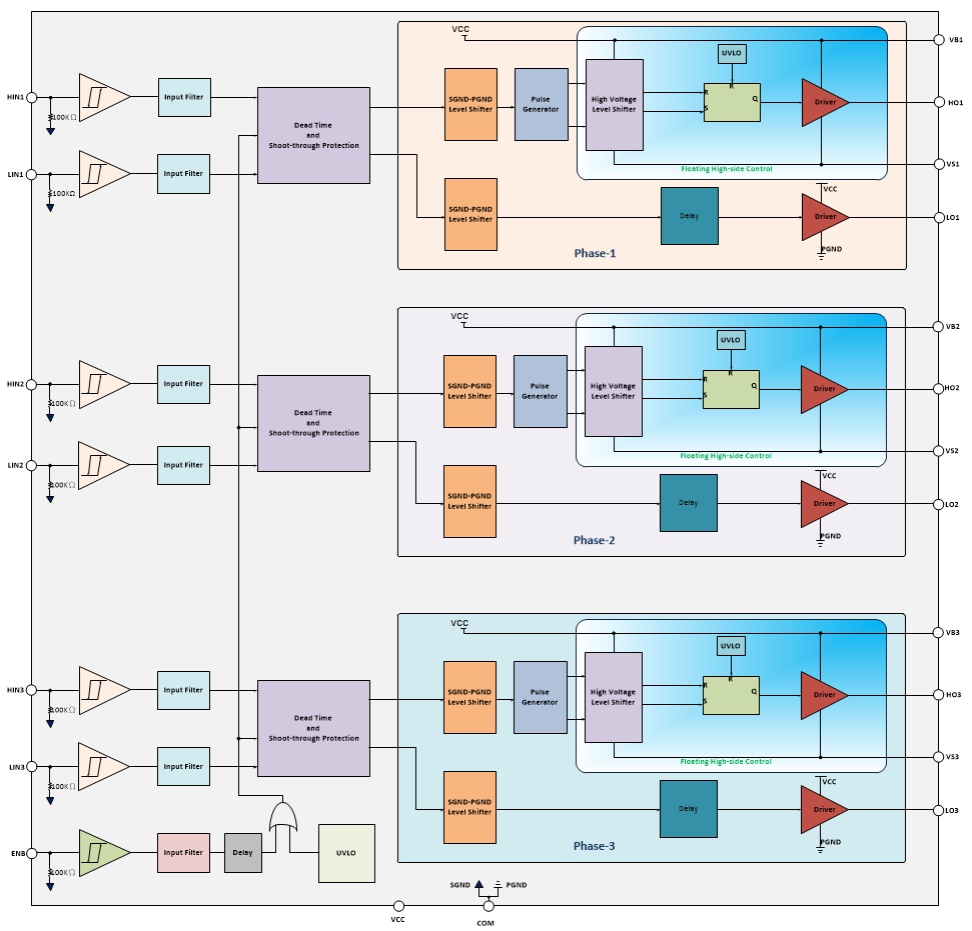

Functional Block Diagram:



Chip Applications:


• Power tools: Electric drills, electric saws, angle grinders, etc.


• Home appliance field: Three-phase motor drive for air conditioners and washing machines. With strong anti-interference capability, it ensures stable operation of home appliances.


• New energy products: Balance bikes, electric scooters, small energy storage inverters. Its low-power consumption feature is suitable for battery-powered scenarios, and its wide-temperature design adapts to outdoor environments.


• Industrial control: Three-phase servo motor drive and industrial inverters. It can work stably in complex industrial environments, reducing equipment failures.

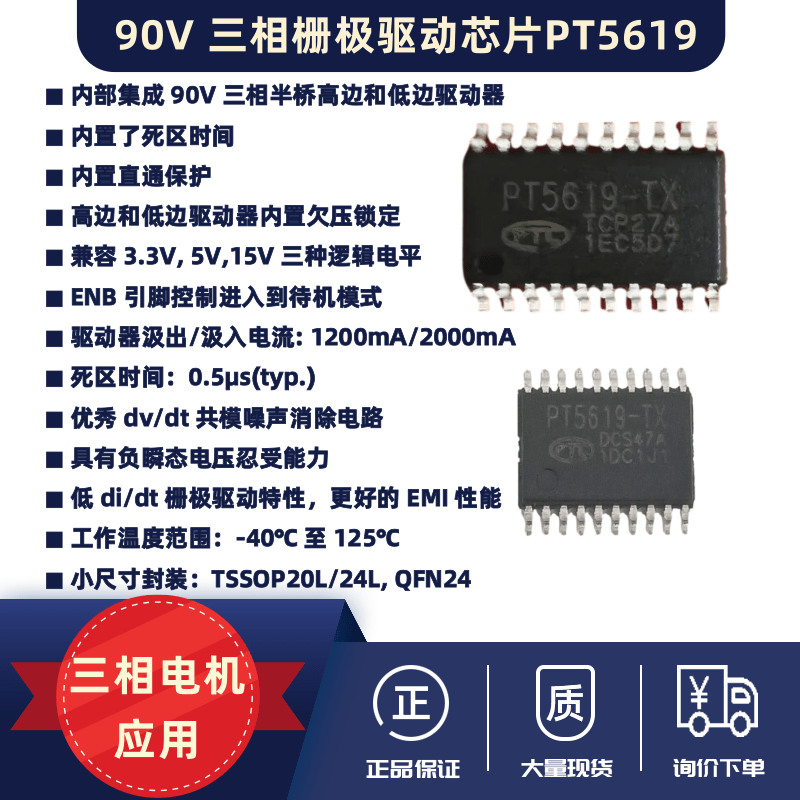

Product Features

  • Internally integrates 90V three-phase half-bridge high-side and low-side drivers

  • Built-in dead-time control

  • Built-in cross-conduction protection

  • Built-in undervoltage lockout (UVLO) for both high-side and low-side drivers

  • Compatible with three logic levels: 3.3V, 5V, 15V

  • ENB pin control for entering standby mode

  • Driver sink/source current: 1200mA/2000mA

  • Dead-time: 0.5μs (typ.)

  • Excellent dv/dt common-mode noise cancellation circuit

  • Negative transient voltage tolerance capability

  • Low di/dt gate drive characteristic for better EMI performance

  • Operating temperature range: -40℃ to 125℃

  • Small-size packages: TSSOP20L/24L, QFN24


Application Scenarios
