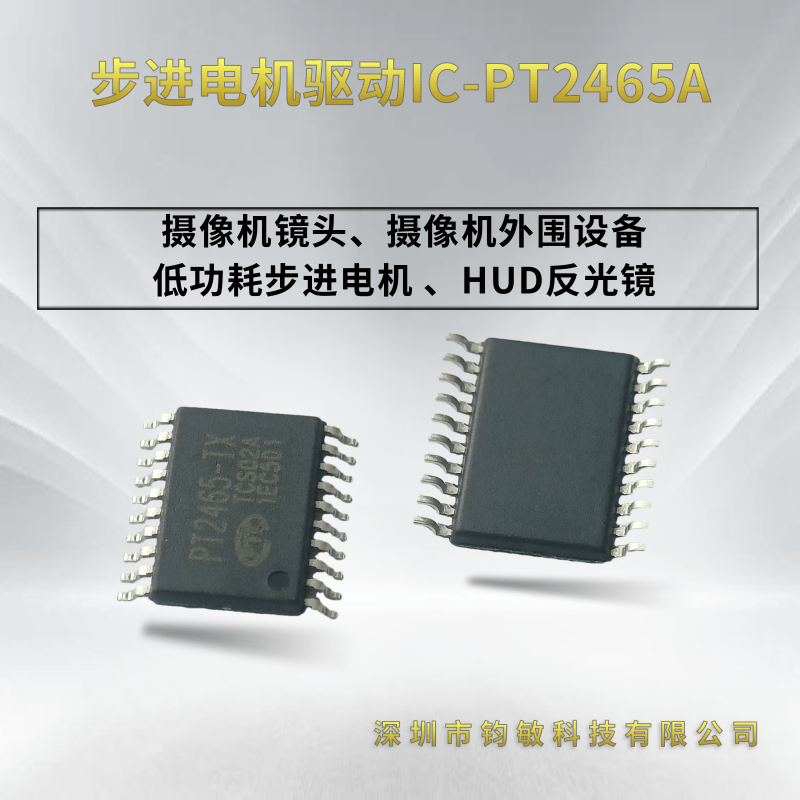

PT2465A
phone 189 2646 8515

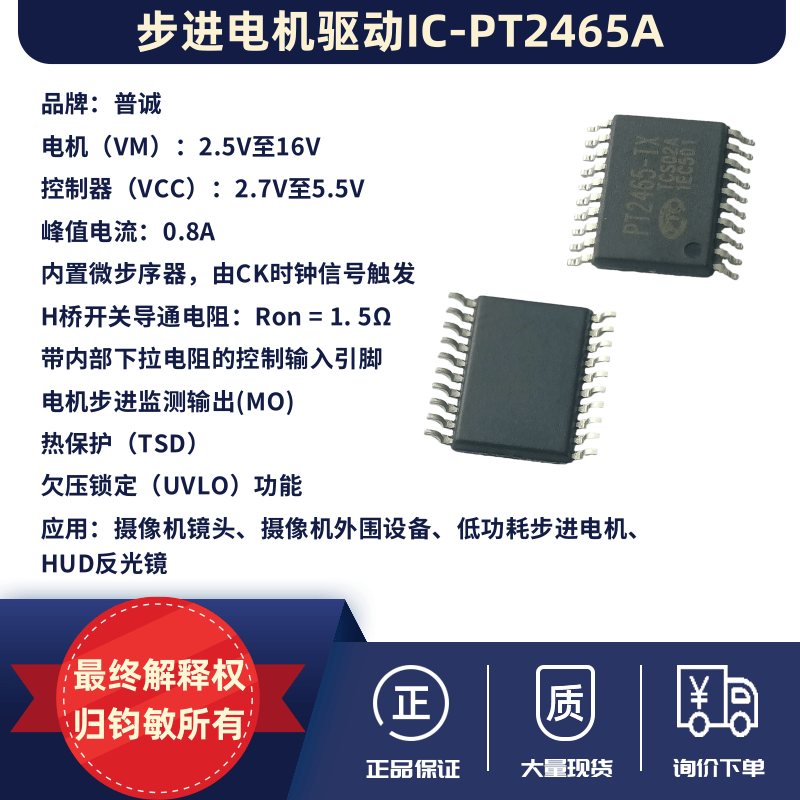

Stepper Motor Driver IC
Brand: Puricome
Motor Supply (VM): 2.5V to 16V
Controller Supply (VCC): 2.7V to 5.5V
Peak Current: 0.8A
Built-in micro-stepping sequencer, triggered by CK clock signal
H-bridge switch on-resistance: Ron = 1.5Ω
Control input pins with internal pull-down resistors
Motor step monitoring output (MO)
Thermal Shutdown (TSD) protection
Under-Voltage Lockout (UVLO) function
Applications: Camera Lenses, Camera Peripherals, Low-Power Stepper Motors, HUD Mirrors
Consult Now Download Sheet
Application Scenarios
摄像头模组 摄像头模组
摄像头模组
摄像机镜头 摄像机镜头
摄像机镜头
Recommended Products
P24C16C
存储器E²PROM 品牌：普冉 ■ 单电源电压与高速性能 ‣ 最低工作电压可低至1.7V ‣ 2.5V至5.5V供电时支持1MHz时钟频率 ‣ 1.7V至2.5V供电时支持400kHz时钟频率 ■ 低功耗CMOS技术 ‣ 读取电流最大400μA ‣ 写入电流最大1.6mA 封装：PDIP-8、SOP-8、TSSOP-8、DFN-8/UDFN-8、SOT23-5、TSOT23-5及6球WLCSP 应用：数字万用表、TV板块、摄像头模组、水表、燃气表、遥控器、血压计
Product Description
Overview of PT2465A:
The PT2465A is a stepper motor driver featuring H-bridge output current controlled by a PWM constant-current topology. Its built-in micro-stepping sequencer can generate sinusoidal output current for the stepper motor via a single clock input.
The PT2465A supports multiple excitation modes, including 2-phase, 1-2-phase, W1-2-phase, and 2W1-2-phase modes. The motor speed is determined by the clock frequency applied to the CK pin and the excitation mode, while the logic level of the CW/CCW pin dictates the forward or reverse direction of the bipolar stepper motor.



Circuit Diagram of PT2465A:



Applications of PT2465A:

  • Camera Lenses

  • Camera Peripherals

  • Low-Power Stepper Motors

  • HUD Mirrors



Product Features

  • Motor power supply voltage range:

    - Control (VCC): 2.7V to 5.5V

    - Motor (VM): 2.5V to 16V

  • Maximum output current: 0.8 A

  • H-bridge switches on-resistance: Ron = 1.5Ω (high side + low side, VM=7 V)

  • Built-in microstep sequencer ticking by CK clock signal

  • Programmable phase current excitation modes (2 phase, 1-2 phase, W1-2 phase and 2W1-2 phase)

  • Control input pins with internal pull-down resistors

  • Motor step monitor output (MO)

  • Thermal shutdown (TSD) protection

  • VCC under voltage lock-out (UVLO)  function

  • 20 pins, thin small surface-mount package (TSSOP-20 173mil, 0.65 mm lead pitch)
