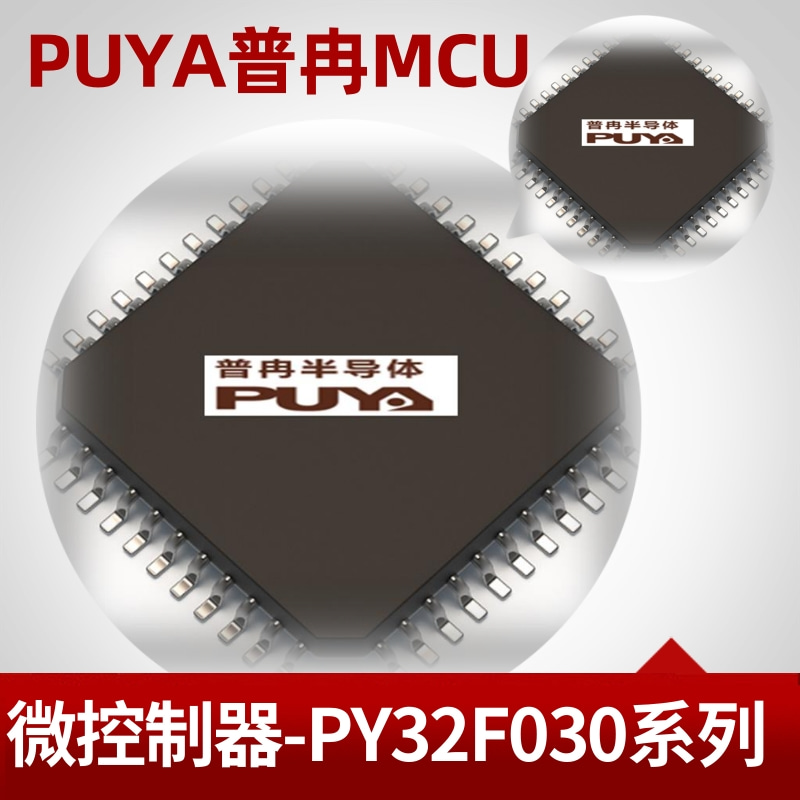

PY32F030
phone 189 2646 8515
MCU
Brand: Puya
Operating Voltage: 1.7V - 5.5V
Operating Temperature: -40℃ - 85℃
Flash Memory: 64Kbytes
Memory: 8Kbytes SRAM
Operating Frequency: 48MHz
Applications: Controllers, handheld devices, PC peripherals, gaming and GPS platforms, industrial applications, etc.
Consult Now Download Sheet
Application Scenarios
手持小风扇 手持小风扇
手持小风扇
Recommended Products
PT2513B
电机驱动IC 品牌：普诚 电压：6V ~ 16V 最大电流：1A 工作温度：-40℃~125℃ 封装：HTSSOP 产品应用：三相无传感器 BLDC 马达驱动、小型风扇、水泵、冰箱风机、空调水泵
LD63006
三相直流无刷电机驱动芯片 品牌：乐业达 工作电压：8V -20V 工作电流：1.5A 温度：-40 to +85°C 封装：VQFN-24 (4mmx4mm) 应用：通用 BLDC 电机、扫地机行走轮电机、扫地机器人边刷、吸尘器行走轮电机、卷发器、水泵、小风扇
Product Description

Chip Introduction

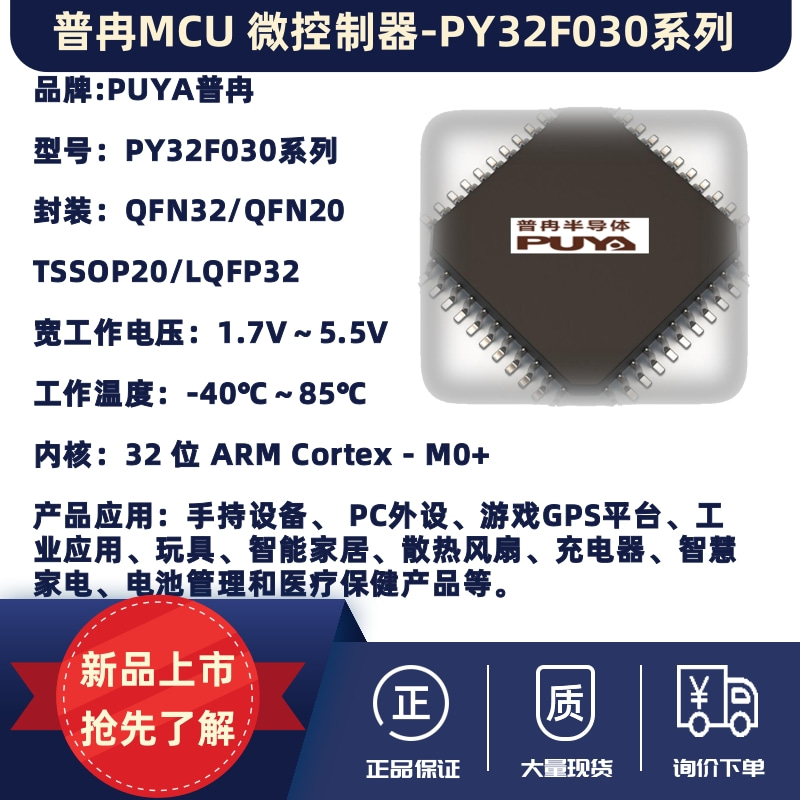

The PY32F030 series microcontrollers adopt a high-performance 32-bit ARM® Cortex®-M0+ core and feature a wide voltage operating range. They integrate up to 64Kbytes of flash memory and 8Kbytes of SRAM, with a maximum operating frequency of 48MHz. This series includes multiple products with different package types. The chip integrates a variety of communication peripherals such as multiple I2C, SPI, and USART interfaces, 1 channel of 12-bit ADC, 5 pieces of 16-bit timers, and 2 channels of comparators.
The PY32F030 series microcontrollers have an operating temperature range of -40℃~85℃ and an operating voltage range of 1.7V~5.5V. The chip provides two low-power operating modes: Sleep and Stop, which can meet the requirements of different low-power applications.
The PY32F030 series microcontrollers are suitable for a variety of application scenarios, such as controllers, handheld devices, PC peripherals, gaming and GPS platforms, industrial applications, etc.




Product Features

Product Features

 Core— 32-bit ARM® Cortex®-M0+— Maximum operating frequency of 48MHz
 Memory— Maximum 64Kbytes of flash memory— Maximum 8Kbytes of SRAM
 Clock System— Internal 4/8/16/22.12/24MHz RC oscillator (HSI)— Internal 32.768KHz RC oscillator (LSI)— 4~32MHz crystal oscillator (HSE)— 32.768KHz low-speed crystal oscillator (LSE)— PLL (supports 2x frequency multiplication for HSI or HSE)
 Power Management and Reset— Operating voltage: 1.7V~5.5V— Low-power modes: Sleep and Stop— Power-on/Power-down Reset (POR/PDR)— Brown-out Detection Reset (BOR)— Programmable Voltage Detection (PVD)
 General Purpose Input/Output (I/O)— Up to 30 I/Os, all configurable as external interrupts— Drive current of 8mA— 4 GPIOs support ultra-strong sink current, configurable as 80mA/60mA/40mA/20mA
 3-channel DMA Controller
 1 x 12-bit ADC— Supports up to 10 external input channels— Input voltage conversion range: 0~VCC
 Timers— 1 x 16-bit advanced control timer (TIM1)— 4 x general-purpose 16-bit timers (TIM3/TIM14/TIM16/TIM17)— 1 x low-power timer (LPTIM), supporting wake-up from Stop mode— 1 x Independent Watchdog Timer (IWDT)— 1 x Window Watchdog Timer (WWDT)— 1 x SysTick Timer— 1 x IRTIM
 RTC (Real-Time Clock)
 Communication Interfaces— 2 x Serial Peripheral Interfaces (SPI)— 2 x Universal Synchronous/Asynchronous Receivers/Transmitters (USART), supporting automatic baud rate detection— 1 x I2C interface, supporting Standard mode (100kHz), Fast mode (400kHz), and 7-bit addressing mode
 Support for 4-digit 7-segment Common-Cathode LED Nixie Tubes— Capable of cyclic scanning of 1-digit, 2-digit, 3-digit, and 4-digit numbers
 Hardware CRC-32 Module
 2 x Comparators
 Unique UID (Unique Identification)
 Serial Wire Debug (SWD)
 Operating Temperature: -40~85℃
 Packages: LQFP32, QFN32, TSSOP20, QFN20, SSOP24
