GX0011
phone 189 2646 8515

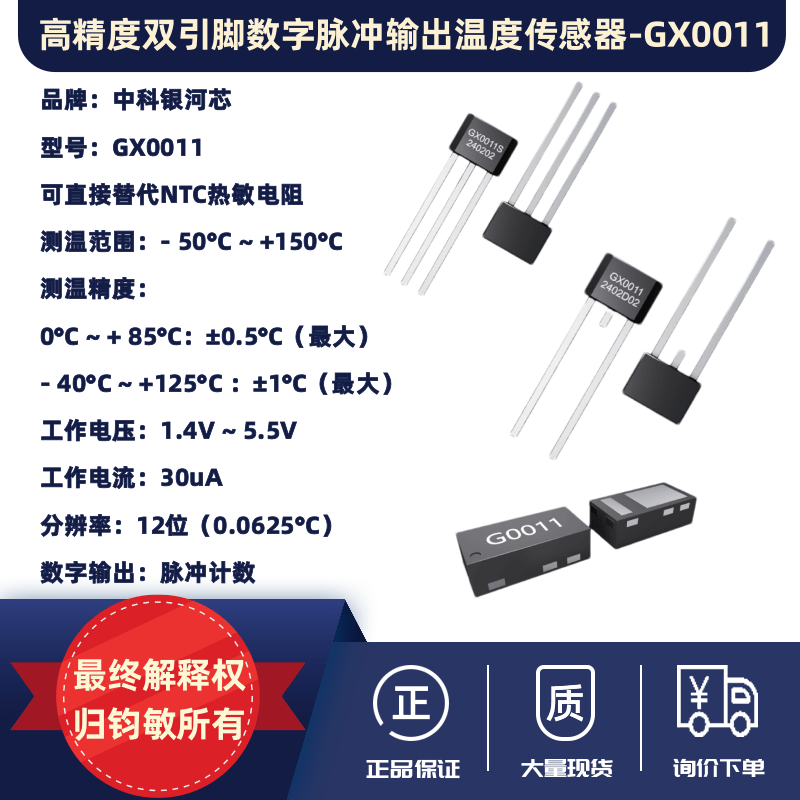

Digital Temperature Sensor
Brand: Zhongke Yinhexin
Directly replaceable with NTC thermistors
Temperature measurement range: -50°C ~ +150°C
Temperature measurement accuracy:
0°C ~ +85°C: ±0.5°C (max.)
-40°C ~ +125°C: ±1°C (max.)
Operating voltage: 1.4V ~ 5.5V
Operating current: 30uA
Resolution: 12-bit (0.0625°C)
Digital output: Pulse counting
Consult Now Download Sheet
Application Scenarios
粮情测温 粮情测温
粮情测温
Recommended Products
GX30H05
单总线高温温度传感器 品牌：中科银河芯 工作电压：2.5V~5.5V 精确度：±0.5°C 封装：TO-92/TO-92S 温度：-80°C to +200°C 应用：HVAC 环境控制，建筑、设备、粮情测温和工业测温以及过程监测控制等应用领域
Product Description

Chip Overview：


GX0011 is a fully integrated digital temperature sensor that delivers 12-bit (0.0625°C) temperature output without the need for any external temperature-sensing components.

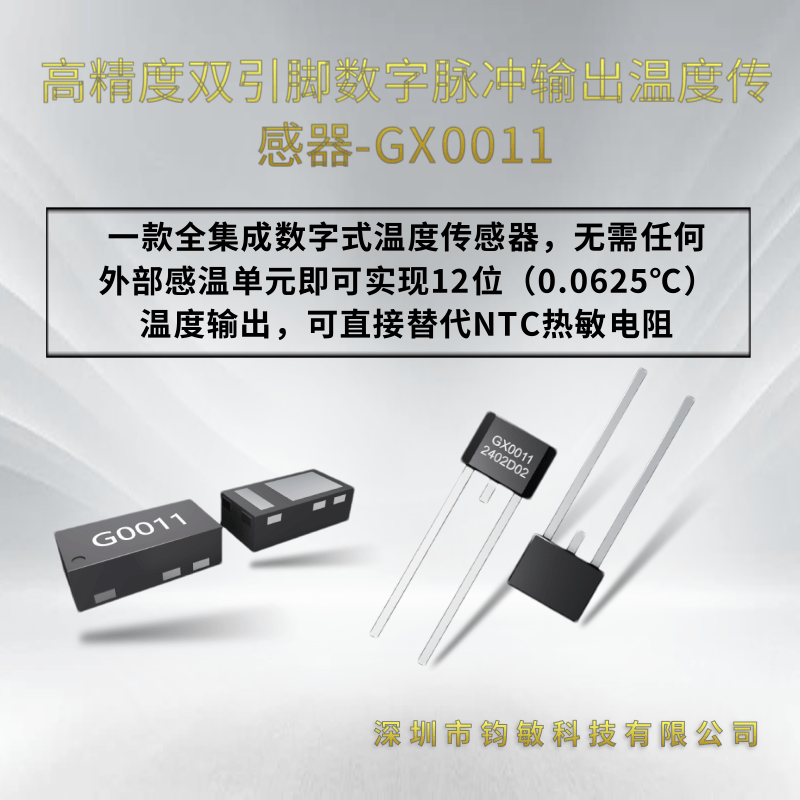

The GX0011 is available in DFN-2 and TO-92S packages, directly replaceable with NTC thermistors. It features simpler operation, enabling high-precision temperature measurement across the entire temperature range without system calibration or software/hardware compensation.
Within its normal operating range of -40°C to +125°C, the GX0011 offers a temperature measurement error of less than ±1°C and excellent temperature linearity. It is suitable for applications such as communications, computers, consumer electronics, environmental monitoring, industrial equipment, and instrumentation.
The GX0011 supports single-wire pulse counting communication, requiring only one signal line to realize both chip power supply and communication output functions. This effectively reduces MCU overhead and costs.


Package Information：


Chip Applications:

  • Digital output temperature probes

  • Industrial Internet of Things (IIoT)

  • White goods

  • Cold chain logistics





Product Features

Directly replaceable with NTC thermistors Temperature measurement range: -50°C ~ +150°C Temperature measurement accuracy: 0°C ~ +85°C: ±0.5°C (max.) -40°C ~ +125°C: ±1°C (max.) Operating voltage: 1.4V ~ 5.5V Operating current: 30uA Resolution: 12-bit (0.0625°C) Digital output: Pulse counting
