| PT2474 DESCRIPTION： The PT2474 is a dual channel H-bridge motor driver that operates on wide supply voltage range from 4V to 16V. The control logic pins have built-in phase generator function; it could drive a four-wire bipolar stepping motor with only 2 input pins. The input waveform is generates by the external MCU and phase relation between two input pins is a standard full-step excitation |
PT2474 BLOCK DIAGRAM： | APPLICATIONS Airflow flap control for refrigerators. Air Conditioner venting control Home appliance Office automation machines |
FEATURES
Wide Supply Voltage Range: 4V to 16V
Single voltage supply with built-in regulator; control logic supply is not necessary.
Dual H-bridge Drivers for a bipolar stepping motor
MOSFET RDS(on) Resistance, HS + LS =1.2Ω
Maximum Output Current: 1.0 Amp (Peak), 700mA (RMS).
Low Power Sleep mode
Built-in Protection Circuits with Thermal Shutdown (TSD), Under Voltage Lock-Out (UVLO)
Output current limiting (OCL) during output terminal shorted to GND.

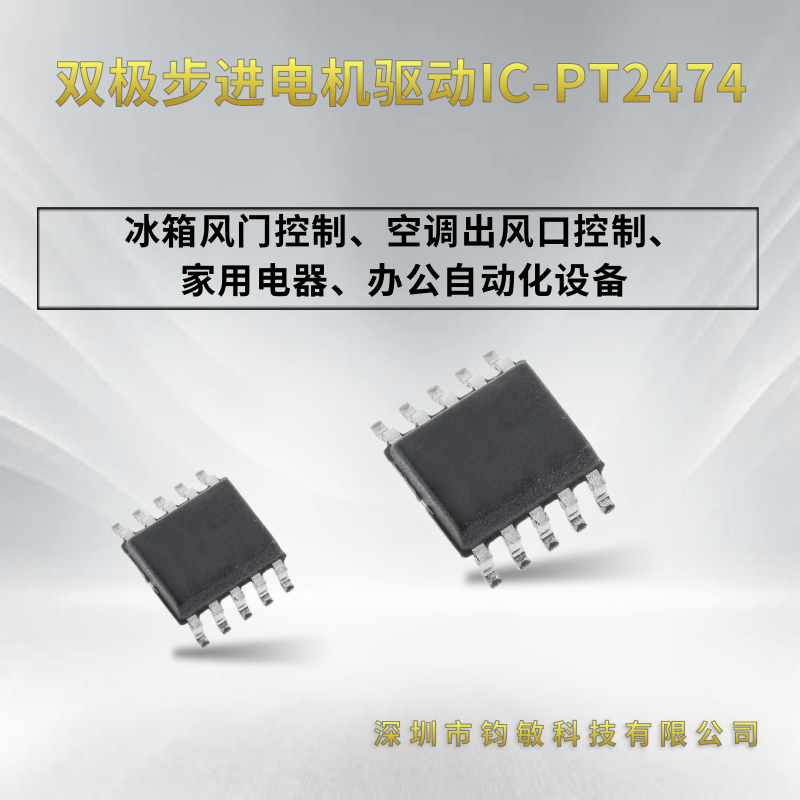

10Pins Small Outline Package (SOP), Pitch=1.0mm.
