PT2484A
phone 189 2646 8515
Dual H-Bridge Motor Driver IC
Brand: Puchen
Voltage Range: 4V ~ 16V
Peak Current: 1A
RMS Current: 700mA
Dual-Channel H-Bridge Driver
Low-Power Sleep Mode
Built-in Protection Circuits
- Over-Temperature Shutdown Protection
- Under-Voltage Lockout Protection
Applications: Refrigerator Damper Control, Air Conditioner Air Outlet Control, Household Appliances, Office Automation Equipment
Consult Now Download Sheet
Application Scenarios
空调电机控制板 空调电机控制板
空调电机控制板
汽车空调出风口风机 汽车空调出风口风机
汽车空调出风口风机

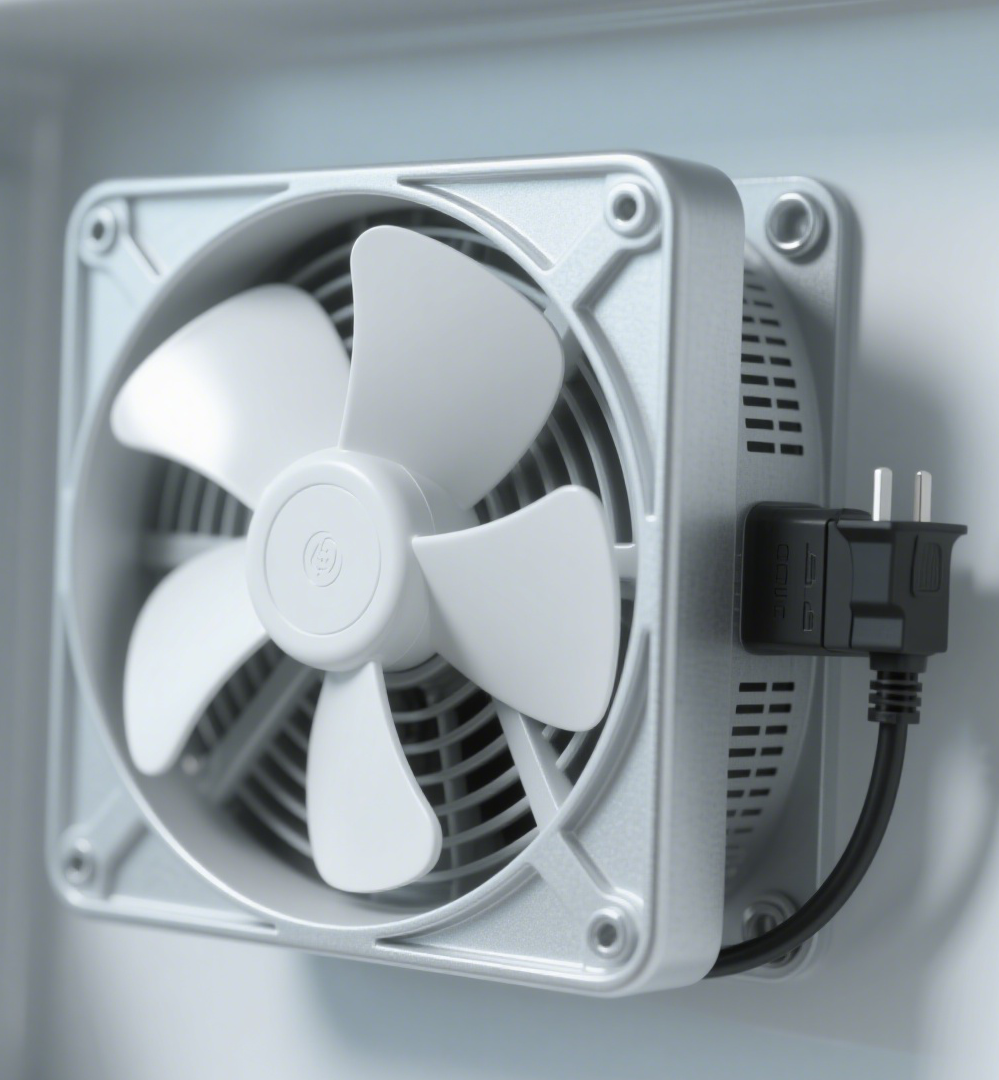

冰箱风机 冰箱风机
冰箱风机

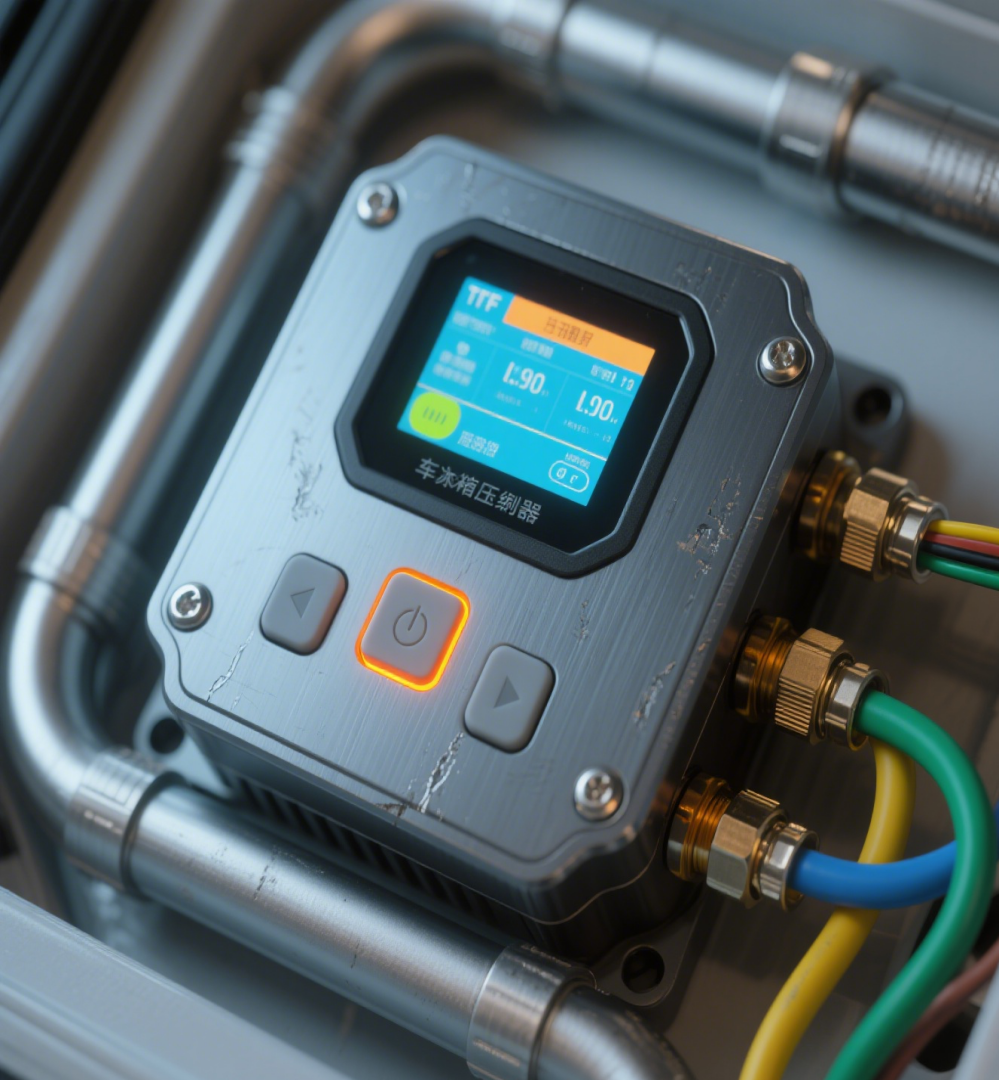

汽车冰箱压缩机控制器 汽车冰箱压缩机控制器
汽车冰箱压缩机控制器
Recommended Products
NHE520F
锑化铟（InSb）霍尔元件 品牌：尼赛拉 电压：168mV-428mV 最大电流：20mA 工作温度：-40℃~100℃ 封装：SOT-143 应用：单相水冷显卡散热器、单相风冷显卡散热器、空调室内电机、空调电机控制器、显卡散热风扇
PT2474
Bipolar Stepper Motor Driver IC Brand: PTC Voltage Range: 4V ~ 16V Peak Current: 1A RMS Current: 700mA Dual-Channel H-Bridge Driver Low-Power Sleep Mode Built-in Protection Circuits: Thermal Shutdown (TSD) Protection Under-Voltage Lock-Out (UVLO) Protection Applications: Refrigerator airflow flap control, air conditioner venting control, home appliances, office automation equipment
PT392V-A
Motor Driver IC​ Brand: Wangjiu​ Voltage: 3-18V​ Maximum Current: 1A​ Operating Temperature: -40~150°C​ Package: TSOT-6pin / DFN-8pin​ Chip Applications: Cooling fans for automotive headlights, cooling fans for automotive infotainment systems, blower fans for automotive air conditioning vents
PT2474
Bipolar Stepper Motor Driver IC Brand: PTC Voltage Range: 4V ~ 16V Peak Current: 1A RMS Current: 700mA Dual-Channel H-Bridge Driver Low-Power Sleep Mode Built-in Protection Circuits: Thermal Shutdown (TSD) Protection Under-Voltage Lock-Out (UVLO) Protection Applications: Refrigerator airflow flap control, air conditioner venting control, home appliances, office automation equipment
PT2513B
电机驱动IC 品牌：普诚 电压：6V ~ 16V 最大电流：1A 工作温度：-40℃~125℃ 封装：HTSSOP 产品应用：三相无传感器 BLDC 马达驱动、小型风扇、水泵、冰箱风机、空调水泵
PT2474
Bipolar Stepper Motor Driver IC Brand: PTC Voltage Range: 4V ~ 16V Peak Current: 1A RMS Current: 700mA Dual-Channel H-Bridge Driver Low-Power Sleep Mode Built-in Protection Circuits: Thermal Shutdown (TSD) Protection Under-Voltage Lock-Out (UVLO) Protection Applications: Refrigerator airflow flap control, air conditioner venting control, home appliances, office automation equipment
ZH5212
电机控制专用32位MCU 品牌：英能 电压：2.8V～5.5V 最高工作频率:96Mhz 工作温度：:-40℃～125℃ 封装：SOP24/QFN24 应用：落地扇、洗衣机水泵、智能马桶水泵
KF32A146
车规级32位MCU微控制器 品牌：领芯微 电压：2.7V～5.5V 最大电流：800mA 工作温度：-40～+125℃ 封装：LQFP48/LQFP64 应用：汽车水泵电机、汽车门窗电机控制器、汽车冰箱压塑机控制器、汽车大灯控制器、汽车尾灯控制器、汽车氛围灯控制器
Product Description

PT2484A Overview

The PT2484/PT2484A is a dual-channel H-bridge motor driver featuring a wide operating voltage range, supporting a supply voltage from 4V to 16V. Equipped with four independent control logic pins, it offers flexible operation and can drive 4-wire bipolar stepper motors, two brushed DC motors, or electromagnetic loads.
The PT2484A integrates built-in protection circuits, which can effectively prevent the H-bridge driver from being damaged due to short-circuit or over-temperature conditions.


PT2484A Block Diagram:


PT2484A Applications

  • Airflow Control in Refrigerators

  • Ventilation Control in Air Conditioners

  • Household Appliances

  • Office Automation Equipment



Product Features

  • Wide Voltage Range: 4V to 16V

  • Single-Voltage Power Supply with Integrated Regulator; no separate control logic power supply required

  • Dual H-Bridge Driver; suitable for bipolar stepper motors or two brushed DC motors

  • MOSFET On-Resistance (HS + LS): 1.2Ω

  • Maximum Output Current: 1A (Peak), 700mA (RMS)

  • Low-Power Standby Mode

  • Integrated Protection Circuits, including Thermal Shutdown (TSD) and Under-Voltage Lockout (UVLO)

  • Output Current Limitation (OCL) with load terminal connected to GND

  • 10-Pin Compact Package (SOP), Pitch = 1.0mm

  • 10-Pin Compact Package (MSOP), Pitch = 0.5mm
