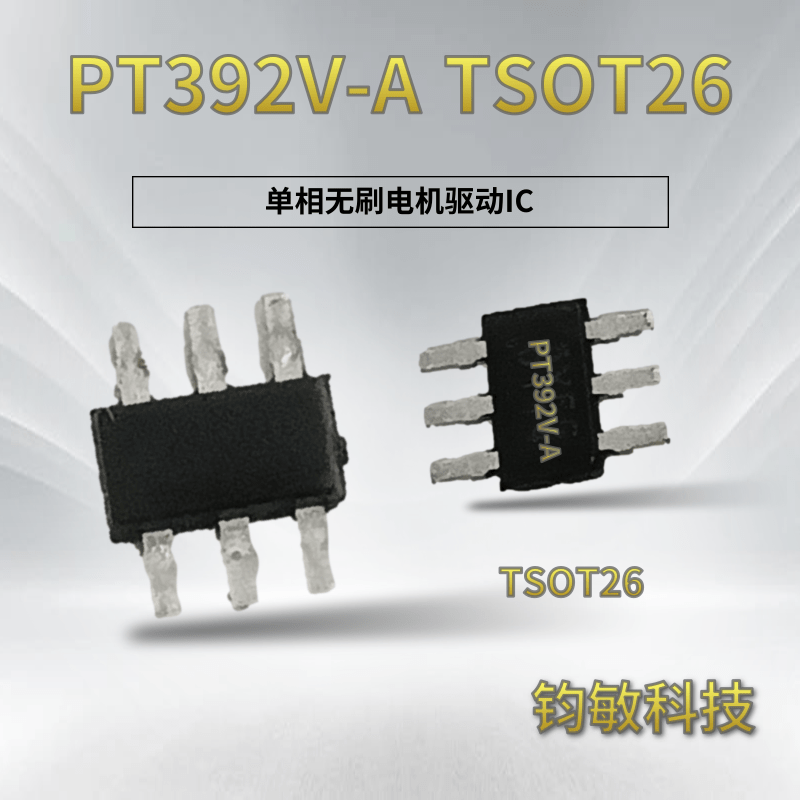

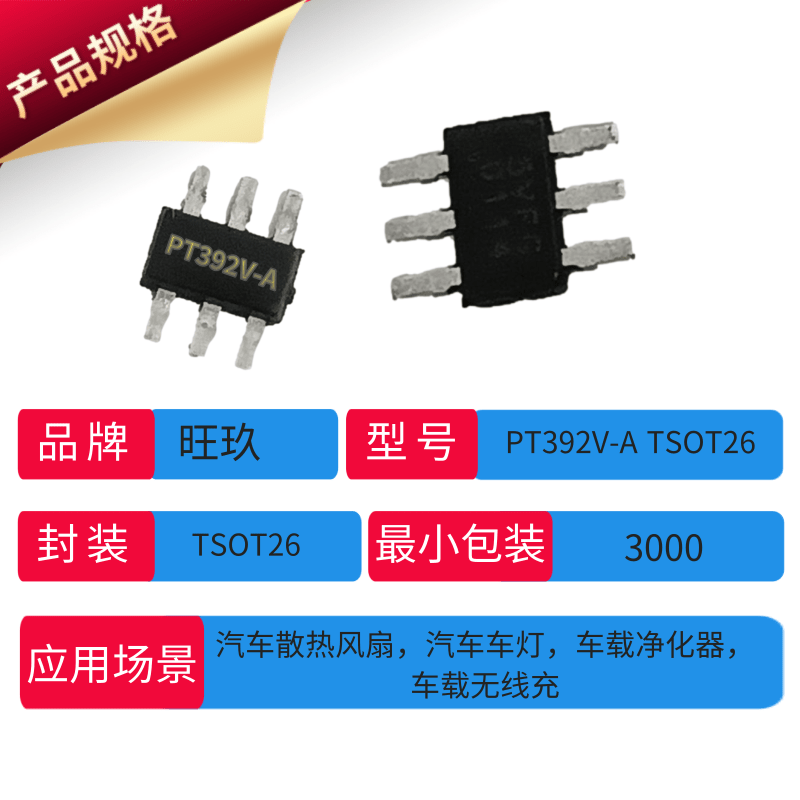

| Chip Description: The PT392V-A is a variable-speed DC fan motor driver IC with a built-in Hall sensor. Its integrated dynamic offset cancellation enables optimal symmetric magnetic sensing. The output driver provides a linear driver to eliminate switching noise. In addition, the linear drive of the PT392V-A will be beneficial to the performance of Baidai (Note: If "百代代" is a brand/module name, it is recommended to confirm the official English name; if it is a translation error, please provide the correct Chinese term for adjustment). This integrated circuit is the optimal solution for PWM speed control in automotive brushless DC fan motor applications. |

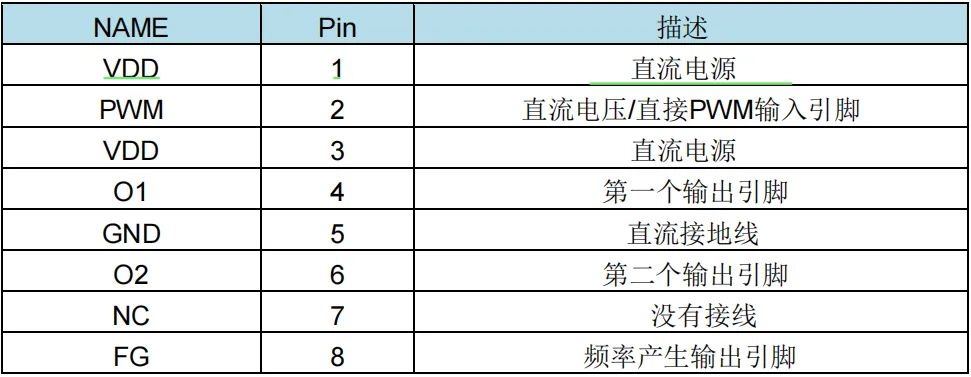

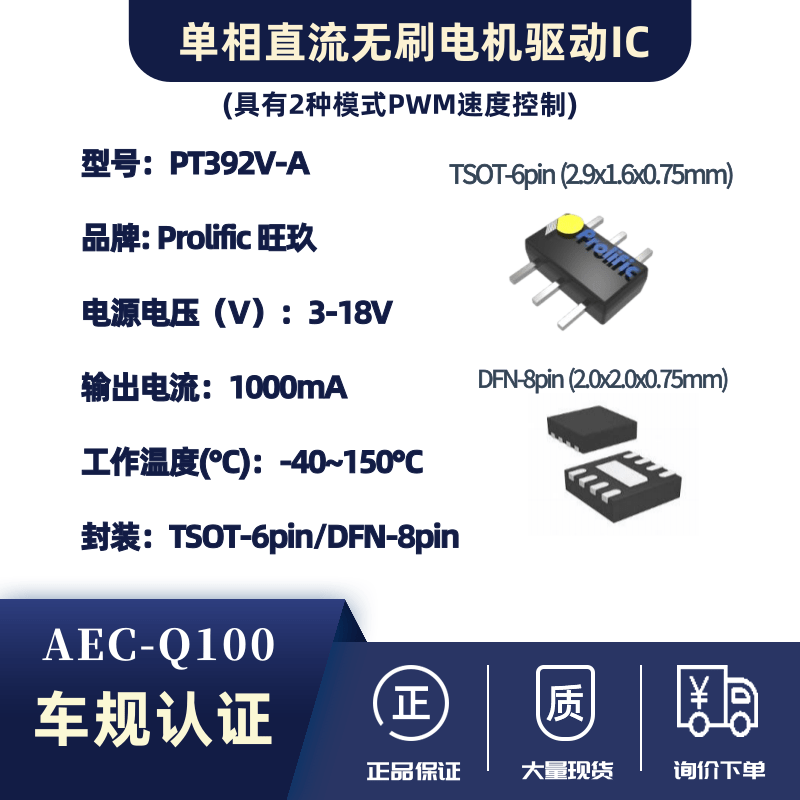

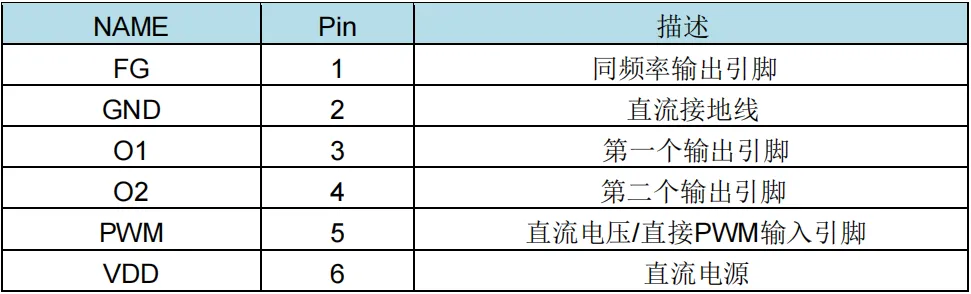

Pin Description： TSOT-6pin (2.9x1.6x0.75mm) DFN-8pin (2x2x0.75mm) Chip Applications:
| 5V/12V Applications

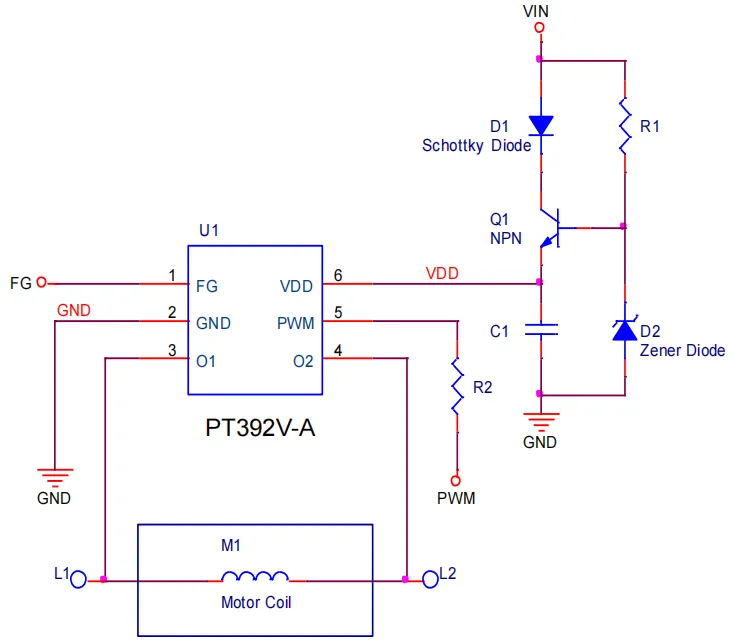

D1: Schottky diode. D2: Zener diode. Q1: NPN transistor. R1: Recommend 1K ohm. R2: PWM resistor 15K ohm. C1: Decoupling capacitor 1.0uF ~ 2.2uF PS. R1, Q1, and D2 are used for overvoltage protection. If VIN (power supply) can be stabilized within 18V, the part can be saved. |
Built-in high-sensitivity Hall sensor
Linear soft-switching output drive
Motor lock protection and automatic restart
Two speed control modes: digital PWM or DC voltage, with automatic recognition
FG open-drain output (Note: "开排水" is corrected to "开漏" based on electronic terminology; "FG" refers to Frequency Generator, a common signal for speed feedback)
Fast start-up
High transient voltage dv/dt
Reverse electromagnetic protection (Note: Redundant "电磁" removed for accuracy; refers to protection against reverse electromagnetic interference/surge)
Thermal protection
Built-in hysteresis comparator
Built-in Zener diode
High-balance and low-thermal-drift magnetic sensing
Low power consumption and high driving efficiency
Jump-start protection (refers to protection against abnormal start-up voltage/current surges)
AEC-Q100 qualified (AEC-Q100 is the automotive electronic component reliability standard)
