GP1S196HCZ
phone 189 2646 8515

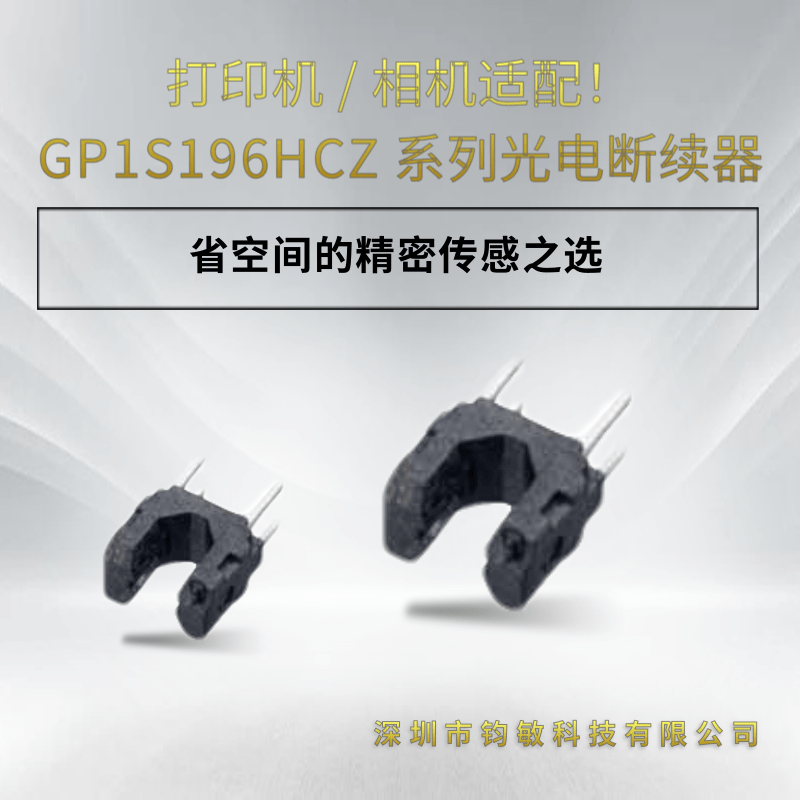

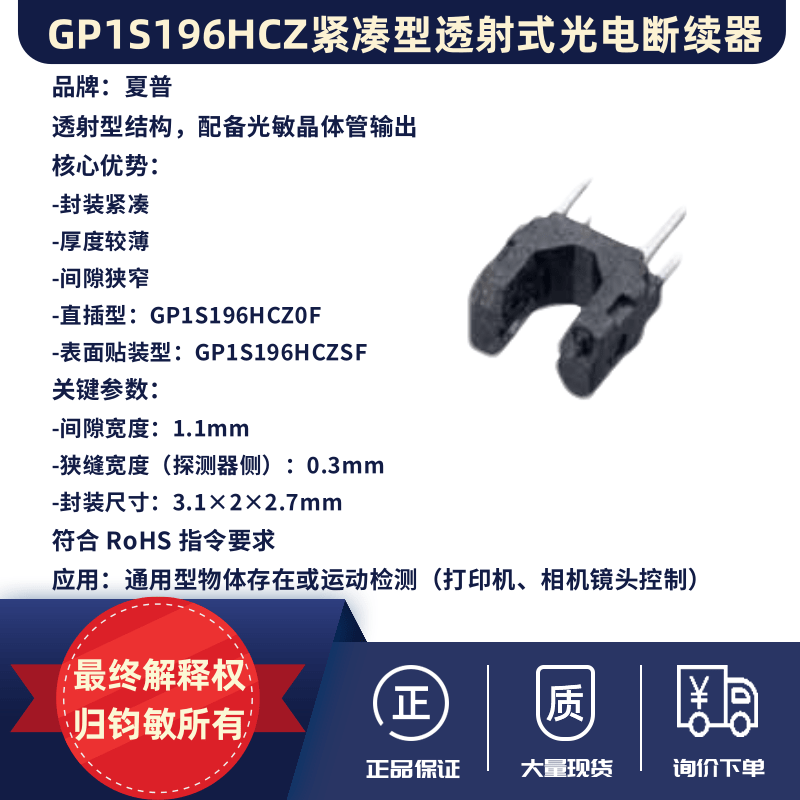

Compact Transmissive Photointerrupter (Optocoupler)
Brand: Sharp
Compact package
Low profile
Narrow gap
Through-hole type: GP1S196HCZ0F
SMT type: GP1S196HCZSF
Gap width: 1.1mm
Slit width (detector side): 0.3mm
Package dimensions: 3.1×2×2.7mm
RoHS directive compliant
Applications: General-purpose object presence or motion detection (printers, camera lens control)
Consult Now Download Sheet
Application Scenarios
数码相机 数码相机
数码相机
打印机 打印机
打印机
Recommended Products
JM8630
Gallium Arsenide Hall Element Brand: Juzhen (Matrix) Maximum Input Current: 14mA Operating Temperature: -40~+125°C Input Resistance: 1250Ω Overall Dimension: 2.51.50.6 (unit not specified, typically mm for such components) Sensitivity: ~90mV @ 5mA @ 50mT Package: SSOT-4 Applications: Displacement monitoring (consumer electronics), displacement sensors (camera modules)
LD8224
微功耗全极性霍尔开关 品牌：乐业达 工作电压：1.65V ~ 5.5 工作温度：-40℃～150℃ 封装：SOT-23-3L 、TO-92S、DFN-4L 输出方式：开漏输出、CMOS 输出 应用：家用电器、工业三表、触屏手机、平板电脑、笔记本电脑、数码相机、玩具、游戏机等
PT2489L
Dual H-Bridge Stepper Motor Driver IC Brand: PTC Supply Voltage: 8V ~ 40V Peak Current: 2.5A (with additional heatsink when VM=24V) Low Switch On-Resistance: 0.4Ω (Typical Value) High-Side + Low-Side at Tj=25℃ Protection Functions: Over-Current Protection (OCP) Thermal Shutdown (TSD) VM Under-Voltage Lockout (UVLO) Fault Indicator Output (FALTN) Applications: Automated Teller Machines (bill counters), video surveillance cameras, printers, scanners, office automation equipment, entertainment equipment, factory automation equipment, robots.
Product Description

Description of GP1S196HCZ:


The GP1S196HCZ series is an ultra-compact transmissive photointerrupter with a package size of only 3.1×2×2.7mm (half the size of other products in the same family). Featuring an opposing emitter and detector structure, it enables high-precision non-contact detection.


Available in two models — Through-hole type (GP1S196HCZ0F) and SMT type (GP1S196HCZSF) — the series is compatible with different mounting processes. Key parameters include a 1.1mm gap width and a 0.3mm slit width (detector side). With strong anti-interference capability, it stably realizes object presence/motion detection.


Compliant with the RoHS directive, the GP1S196HCZ series is widely used in precision equipment such as printers and camera lens control, making it an efficient sensing solution for space-constrained applications.



Applications of GP1S196HCZ:
General-purpose detection of object presence or motion
Application Examples:

  • Printers

  • Camera lens control




Product Features
Transmissive structure with phototransistor output
Core Advantages:

  • Compact package

  • Low profile

  • Narrow gap

  • Through-hole type: GP1S196HCZ0F

  • SMT type: GP1S196HCZSF

Key Parameters:

  • Gap width: 1.1mm

  • Slit width (detector side): 0.3mm

  • Package dimensions: 3.1×2×2.7mm


Compliant with RoHS directive
