PT2489L
phone 189 2646 8515

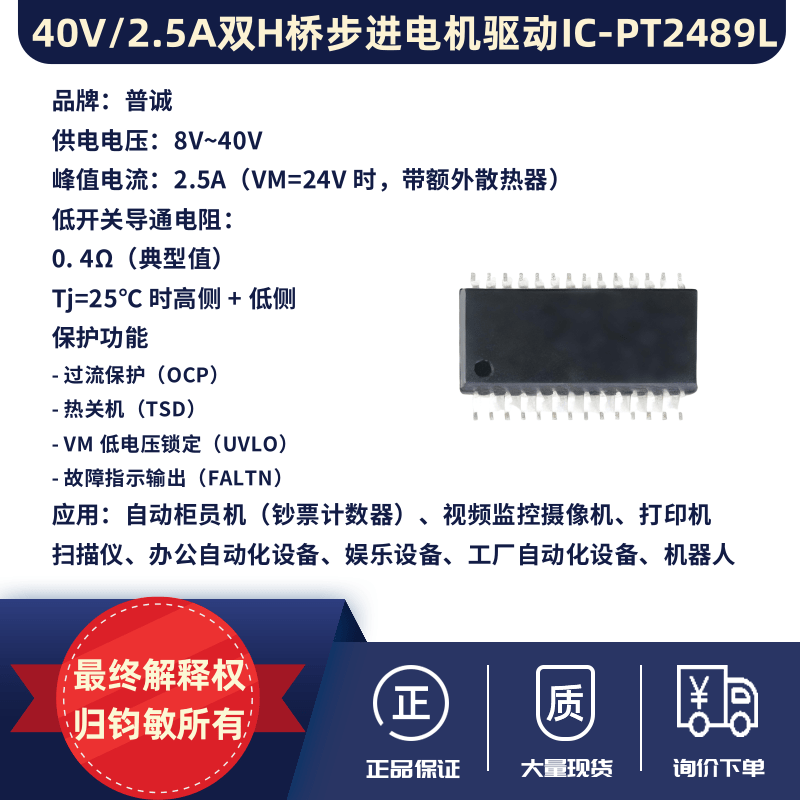

Dual H-Bridge Stepper Motor Driver IC
Brand: PTC
Supply Voltage: 8V ~ 40V
Peak Current: 2.5A (with additional heatsink when VM=24V)
Low Switch On-Resistance:
0.4Ω (Typical Value)
High-Side + Low-Side at Tj=25℃
Protection Functions:
Over-Current Protection (OCP)
Thermal Shutdown (TSD)
VM Under-Voltage Lockout (UVLO)
Fault Indicator Output (FALTN)
Applications: Automated Teller Machines (bill counters), video surveillance cameras, printers, scanners, office automation equipment, entertainment equipment, factory automation equipment, robots.
Consult Now Download Sheet
Application Scenarios
扫地机器人吸尘电机 扫地机器人吸尘电机
扫地机器人吸尘电机
扫地机器人边刷电机 扫地机器人边刷电机
扫地机器人边刷电机

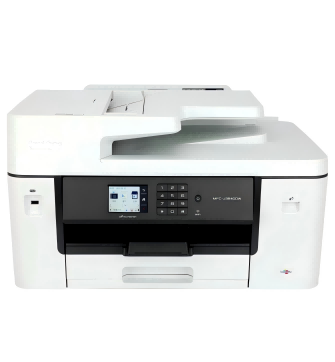

打印机 打印机
打印机
Recommended Products
ZH6358
电机驱动IC 品牌：英能 电压：7V~32V 最大电流：150mA 工作温度：-40℃~150℃ 封装：ETSSOP24 应用：三相水冷显卡散热器、扫地机器人主吸电机、风扇、水泵、三相永磁同步电机
ZH6332
无刷方波驱动IC 品牌：英能 电压：6V~40V 最大电流：3A 工作温度：-40℃~125℃ 封装：TSSOP20/QFN20 应用：三相永磁同步电机、扫地机器人走路电机、扫路机器人边刷电机
P24C64C
存储器E²PROM 品牌：普冉 最低工作电压低至1.7V 读取电流400uA，最大值 写入电流最大1.0mA 封装：PDIP、SOP、TSSOP、DFN/UDFN和SOT23-5 应用：红外热成像仪、电话座机、扫地机器人、镜头模组
P24C128E
存储器E²PROM 品牌：普冉 最低工作电压低至1.7V 低功耗CMOS技术 读取电流最大100uA 写入电流最大0.5mA 封装：WLCSP 应用：红外热成像仪、电话座机、扫地机器人、镜头模组
AM2355N
电机驱动IC 品牌：晶致 电压(V):1.8~6.0V 最大电流(mA):1000 工作温度(°C):-40~+125 封装:DFN10 3*3 应用：笔电风扇、电动口罩风扇、电动水阀电机、美容仪器电机、扫地机器人
AM8935
三相无感直流风扇电机驱动IC 品牌:晶致 工作电压:3V-16V 峰值电流:1200mA 工作温度:-40℃~95°C 封装:DFN 5x4-14L 产品应用:显卡风扇/水冷散热泵/扫地机器人
GC4931P
三相有感电机驱动IC 品牌：芯麦 电压(V):4.7~36V 最大电流(mA):MOS外置 工作温度(C):-40+150°C 封装:QFN28 应用：筋膜枪电机、扫地机器人电机、吸尘器电机、齿轮箱减速电机
PT3661
霍尔IC 品牌：旺玖 工作电压：2.4V-5.0V 微功率：（5~7uW（典型值）：Vcc=3.0V） 工作温度：-40°C-85°C 封装：VQFN32V 应用：盖探测器、电池供电、手持设备、扫地机器人
PT3621A
单极霍尔开关 品牌：旺玖 工作电压：2.5V~18V 峰值电流：25mA 工作温度：-40°C-150°C 封装：TO-92/SOT-23 应用：电剪刀刀口位置检测 、盖探测器、速度测量、家用电器、家庭安全、VCD/DVD加载器、CD/DVD Rom、扫地机器人（尘盒位置检测）
LD63006
三相直流无刷电机驱动芯片 品牌：乐业达 工作电压：8V -20V 工作电流：1.5A 温度：-40 to +85°C 封装：VQFN-24 (4mmx4mm) 应用：通用 BLDC 电机、扫地机行走轮电机、扫地机器人边刷、吸尘器行走轮电机、卷发器、水泵、小风扇
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans， electronic cigarettes, sensor devices, etc.
PT5139
Dual H-Bridge Motor Driver IC Brand: Puricome Part Number: MPS6507 Supply Voltage: 2.7V ~ 15V Current: 0.7A Low Quiescent Current: 1.1mA Low Sleep Current: 1μA Thermal Shutdown and Under-Voltage Lockout (UVLO) Protection Over-Current Protection (OCP) Over-Temperature Output Flag Thermally Enhanced Surface-Mount Package Applications: Digital Still Cameras, POS Printers, Video Surveillance Cameras, Smart TV Devices (Lens Lifting), Robots, Battery-Powered Toys
ZH6332
无刷方波驱动IC 品牌：英能 电压：6V~40V 最大电流：3A 工作温度：-40℃~125℃ 封装：TSSOP20/QFN20 应用：三相永磁同步电机、扫地机器人走路电机、扫路机器人边刷电机
AM2355N
电机驱动IC 品牌：晶致 电压(V):1.8~6.0V 最大电流(mA):1000 工作温度(°C):-40~+125 封装:DFN10 3*3 应用：笔电风扇、电动口罩风扇、电动水阀电机、美容仪器电机、扫地机器人
AM8935
三相无感直流风扇电机驱动IC 品牌:晶致 工作电压:3V-16V 峰值电流:1200mA 工作温度:-40℃~95°C 封装:DFN 5x4-14L 产品应用:显卡风扇/水冷散热泵/扫地机器人
PT3661
霍尔IC 品牌：旺玖 工作电压：2.4V-5.0V 微功率：（5~7uW（典型值）：Vcc=3.0V） 工作温度：-40°C-85°C 封装：VQFN32V 应用：盖探测器、电池供电、手持设备、扫地机器人
LD63006
三相直流无刷电机驱动芯片 品牌：乐业达 工作电压：8V -20V 工作电流：1.5A 温度：-40 to +85°C 封装：VQFN-24 (4mmx4mm) 应用：通用 BLDC 电机、扫地机行走轮电机、扫地机器人边刷、吸尘器行走轮电机、卷发器、水泵、小风扇
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans， electronic cigarettes, sensor devices, etc.
PT5139
Dual H-Bridge Motor Driver IC Brand: Puricome Part Number: MPS6507 Supply Voltage: 2.7V ~ 15V Current: 0.7A Low Quiescent Current: 1.1mA Low Sleep Current: 1μA Thermal Shutdown and Under-Voltage Lockout (UVLO) Protection Over-Current Protection (OCP) Over-Temperature Output Flag Thermally Enhanced Surface-Mount Package Applications: Digital Still Cameras, POS Printers, Video Surveillance Cameras, Smart TV Devices (Lens Lifting), Robots, Battery-Powered Toys
GP1S196HCZ
Compact Transmissive Photointerrupter (Optocoupler) Brand: Sharp Compact package Low profile Narrow gap Through-hole type: GP1S196HCZ0F SMT type: GP1S196HCZSF Gap width: 1.1mm Slit width (detector side): 0.3mm Package dimensions: 3.1×2×2.7mm RoHS directive compliant Applications: General-purpose object presence or motion detection (printers, camera lens control)
Product Description

Description of PT2489L

PT2489L is a monolithic integrated motor driver specifically designed for printers, scanners, or household appliances. It adopts a dual-channel H-bridge architecture, which can drive bipolar stepper motors or two brushed DC motors.

The H-bridge driver is composed entirely of N-channel MOSFETs, enabling a maximum output current of up to 2.5A (with VM=24V and Ta=25°C). The phase/enable input interface is a common configuration for motor drivers; it features high flexibility and can control H-bridge switching to regulate the current and phase of motor windings. The motor current decay mode is programmable via a three-state input pin.
PT2489L is available in a 28-pin HTSSOP package with an exposed thermal pad.





Applications of PT2489L


  • Automated Teller Machines (Bill Counters)

  • Video Surveillance Cameras

  • Printers

  • Scanners

  • Office Automation Equipment

  • Entertainment Equipment

  • Factory Automation Equipment

  • Robots



Product Features

Electrical Characteristics & Features of PT2489L

  • Maximum Supply Voltage: 8V to 40V

  • Maximum Drive Current: 2.5A (with additional heatsink at VM=24V)

  • Low Switch On-Resistance: 0.4Ω (Typical Value), High-Side + Low-Side at Tj=25℃

  • Phase and Enable Control Interface

  • H-Bridge Driver Output: 4-level PWM constant current regulation

  • Winding Current Decay Modes: Slow Decay, Fast Decay

  • Motor Compatibility: Drives unipolar two-phase stepper motors or two brushed DC motors

  • Integrated 3.3V Reference Voltage Output

  • Low-Power Sleep Mode

  • Protection Functions:

    • Over-Current Protection (OCP)

    • Thermal Shutdown (TSD)

    • VM Under-Voltage Lockout (UVLO)

    • Fault Indicator Output (FALTN)
