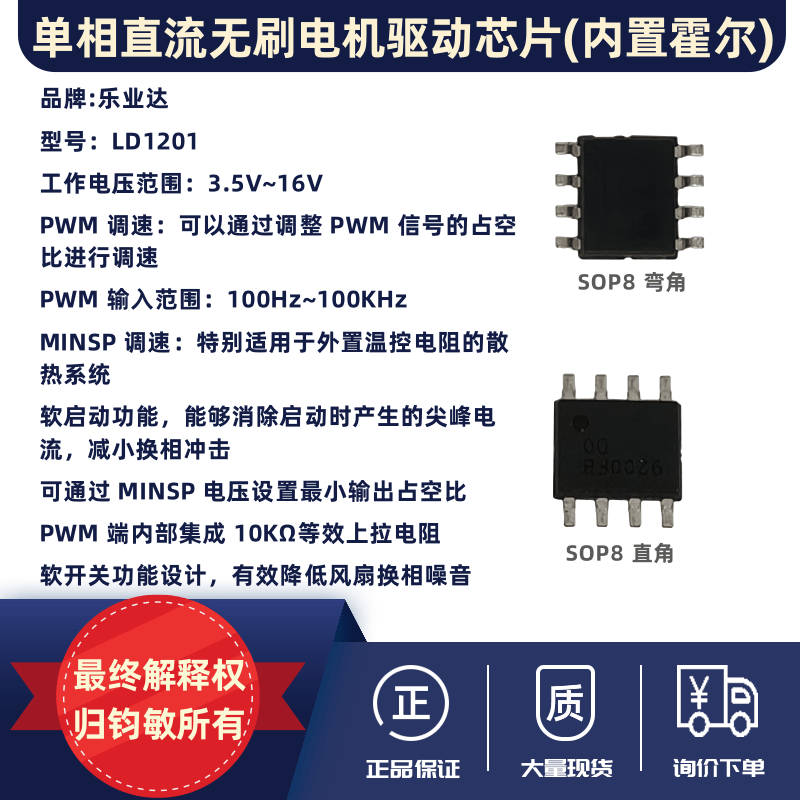

LD1201
phone 0755-2810 2601
单相直流无刷电机驱动芯片
品牌：乐业达
工作电压范围：3.5V~16V
PWM调速：可以通过调整 PWM 信号的占空比进行调速
PWM输入范围：100Hz~100KHz
MINSP调速：特别适用于外置温控电阻的散热系统
应用：单相直流无刷马达、单相直流无刷风扇、CPU散热风扇、CPU水冷泵、GPU散热风扇等
Consult Now Download Sheet
Application Scenarios
笔记本电脑风扇 笔记本电脑风扇
笔记本电脑风扇
GPU散热风扇 GPU散热风扇
GPU散热风扇
CPU水冷泵 CPU水冷泵
CPU水冷泵
CUP散热风扇 CUP散热风扇
CUP散热风扇
Recommended Products
AM7299S
单相全波电机驱动IC 品牌：晶致 电压：18V 最大电流：1.2A 工作温度：-40℃~105℃ 封装：eTSSOP 14L 应用：风扇电机、3080显卡风扇、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
AM7228S
单相全波电机驱动IC 品牌：晶致 电压：18V 最大电流：1.2A 工作温度：-40℃~105℃ 封装：eTSSOP 14L 应用：风扇电机、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
AM2355N
电机驱动IC 品牌：晶致 电压(V):1.8~6.0V 最大电流(mA):1000 工作温度(°C):-40~+125 封装:DFN10 3*3 应用：笔电风扇、电动口罩风扇、电动水阀电机、美容仪器电机、扫地机器人
MS39531
Sinusoidal Three-Phase Sensorless DC Motor Driver IC Brand: RM Semiconductor Operating Voltage: 4.5-16V, Typical Voltage 12V Peak Current: Up to 3A Key Features: Quiet Operation Sensorless Sinusoidal Wave Startup Low Rdson MOSFET (High-Side + Low-Side: 200mΩ) Speed Curves Configurable via EEPROM Multiple Startup Modes & Adjustable Startup Parameters Low Power Consumption Mode Comprehensive Protection Functions: Overcurrent, Overtemperature Protection Undervoltage Lockout (UVLO) Lock Detection Applications: Household Fan Applications, High-Speed Server Fans, etc.
ACM6753
Three-Phase Brushless DC Motor Driver IC Brand: Acme-Semi Model: ACM6753 Peak Current: 3.2A Operating Voltage: 12V Input Voltage Range: 5V - 18V Power: 30-40W Package: QFN(24) Features: Supports reverse wind startup, built-in sampling resistor Applications: Fan driver, water pump driver, intelligent toilet, air conditioner fresh air system
AM7299S
单相全波电机驱动IC 品牌：晶致 电压：18V 最大电流：1.2A 工作温度：-40℃~105℃ 封装：eTSSOP 14L 应用：风扇电机、3080显卡风扇、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
AM7228S
单相全波电机驱动IC 品牌：晶致 电压：18V 最大电流：1.2A 工作温度：-40℃~105℃ 封装：eTSSOP 14L 应用：风扇电机、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
MS39531
Sinusoidal Three-Phase Sensorless DC Motor Driver IC Brand: RM Semiconductor Operating Voltage: 4.5-16V, Typical Voltage 12V Peak Current: Up to 3A Key Features: Quiet Operation Sensorless Sinusoidal Wave Startup Low Rdson MOSFET (High-Side + Low-Side: 200mΩ) Speed Curves Configurable via EEPROM Multiple Startup Modes & Adjustable Startup Parameters Low Power Consumption Mode Comprehensive Protection Functions: Overcurrent, Overtemperature Protection Undervoltage Lockout (UVLO) Lock Detection Applications: Household Fan Applications, High-Speed Server Fans, etc.
ACM6753
Three-Phase Brushless DC Motor Driver IC Brand: Acme-Semi Model: ACM6753 Peak Current: 3.2A Operating Voltage: 12V Input Voltage Range: 5V - 18V Power: 30-40W Package: QFN(24) Features: Supports reverse wind startup, built-in sampling resistor Applications: Fan driver, water pump driver, intelligent toilet, air conditioner fresh air system
AM7228S
单相全波电机驱动IC 品牌：晶致 电压：18V 最大电流：1.2A 工作温度：-40℃~105℃ 封装：eTSSOP 14L 应用：风扇电机、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
MS39531
Sinusoidal Three-Phase Sensorless DC Motor Driver IC Brand: RM Semiconductor Operating Voltage: 4.5-16V, Typical Voltage 12V Peak Current: Up to 3A Key Features: Quiet Operation Sensorless Sinusoidal Wave Startup Low Rdson MOSFET (High-Side + Low-Side: 200mΩ) Speed Curves Configurable via EEPROM Multiple Startup Modes & Adjustable Startup Parameters Low Power Consumption Mode Comprehensive Protection Functions: Overcurrent, Overtemperature Protection Undervoltage Lockout (UVLO) Lock Detection Applications: Household Fan Applications, High-Speed Server Fans, etc.
ACM6753
Three-Phase Brushless DC Motor Driver IC Brand: Acme-Semi Model: ACM6753 Peak Current: 3.2A Operating Voltage: 12V Input Voltage Range: 5V - 18V Power: 30-40W Package: QFN(24) Features: Supports reverse wind startup, built-in sampling resistor Applications: Fan driver, water pump driver, intelligent toilet, air conditioner fresh air system
Product Description

芯片概述：


LD1201是一款采用数模混合技术设计的直流马达驱动IC 。


LD1201集成了精准电压源、霍尔传感器、控制器、功率驱动模块。支持宽电压范围至3.5V~16V 。


LD1201内置电源地反接保护，无需外加防反接二极管。在欠压下芯片会自动停止驱动，直到电压恢复到正常值。


LD1201适用于驱动单相直流无刷马达，PWM调速散热风扇等。


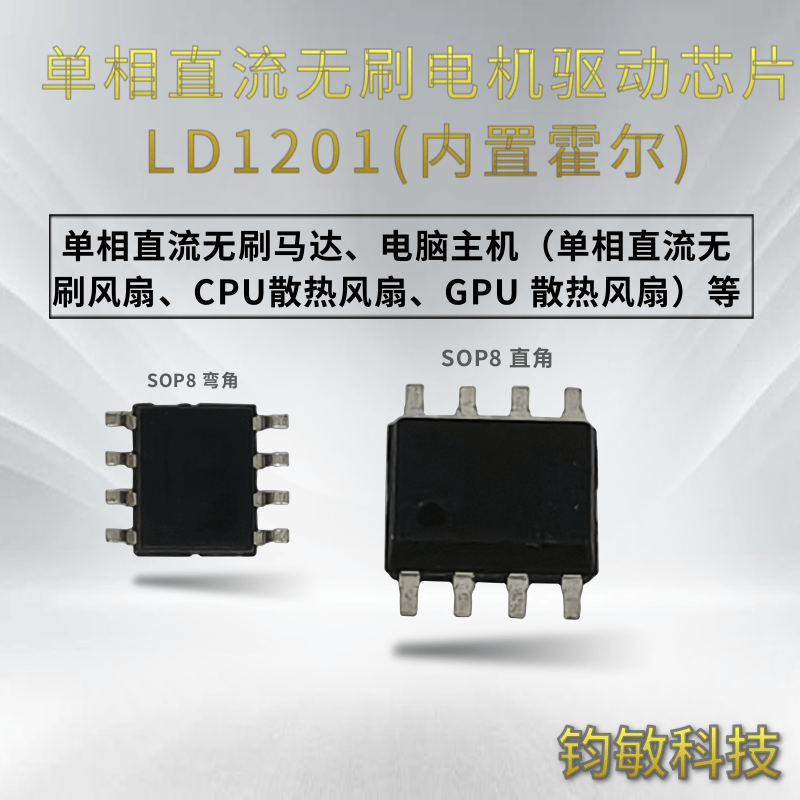

简洁的SOP-8封装使用更加方便。


芯片应用：


  • 单相直流无刷马达

  • 单相直流无刷风扇

  • CPU散热风扇

  • CPU水冷泵

  • GPU散热风扇

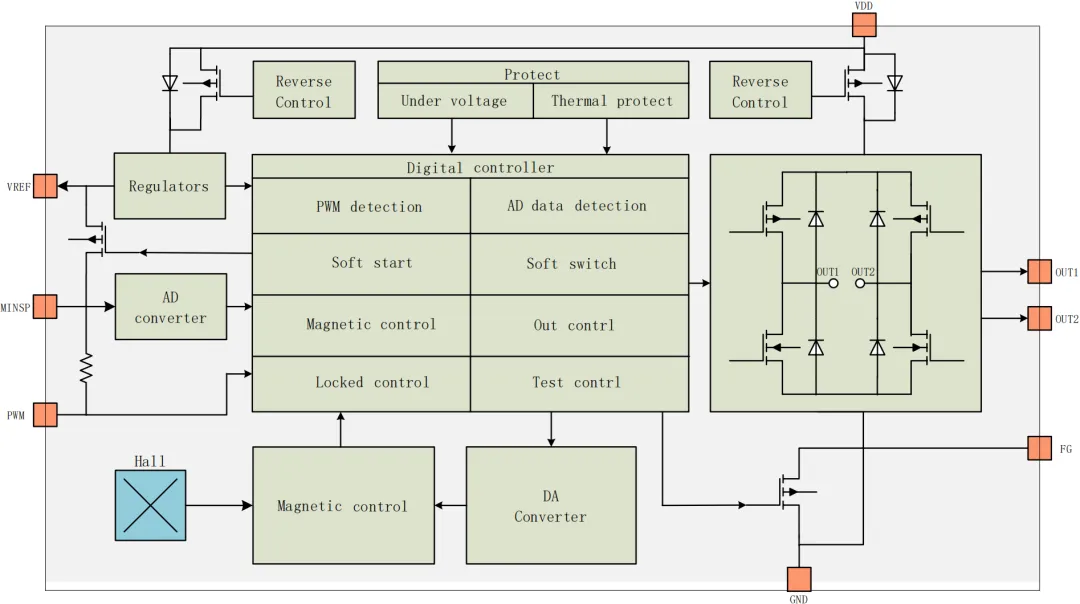

功能框图：

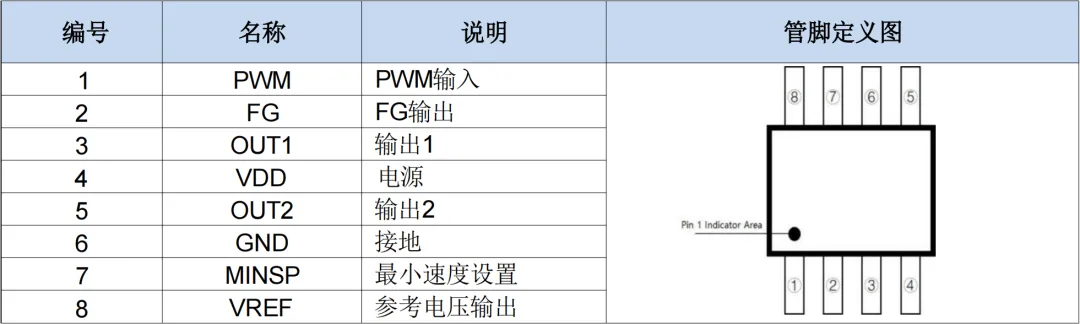

引脚描述及说明：

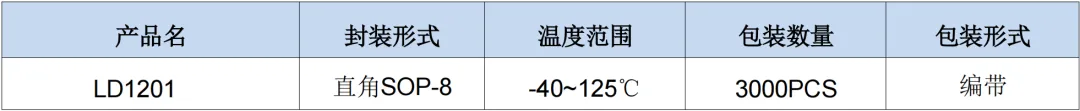

订购信息：



Product Features

工作电压范围：3.5V~16V

PWM 调速：可以通过调整 PWM 信号的占空比进行调速

PWM 输入范围：100Hz~100KHz

MINSP 调速：特别适用于外置温控电阻的散热系统

软启动功能，能够消除启动时产生的尖峰电流，减小换相冲击

可通过 MINSP 电压设置最小输出占空比

PWM 端内部集成 10KΩ等效上拉电阻

软开关功能设计，有效降低风扇换相噪音

完备的保护功能：电源地反接保护、堵转保护、欠压保护、过温保护

内置 FG 输出

封装形式：平脚 SOP-8
