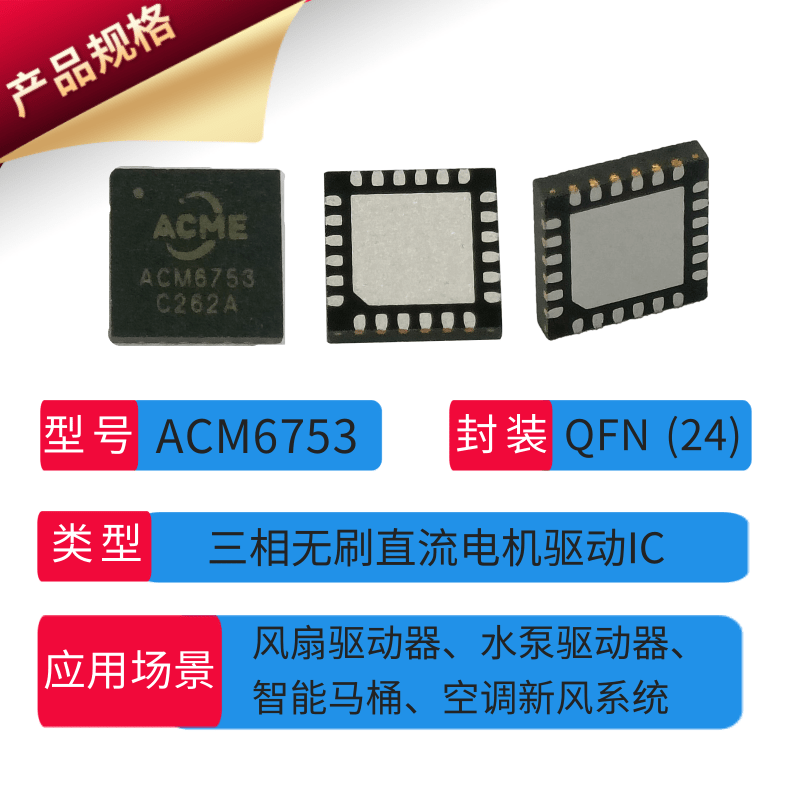

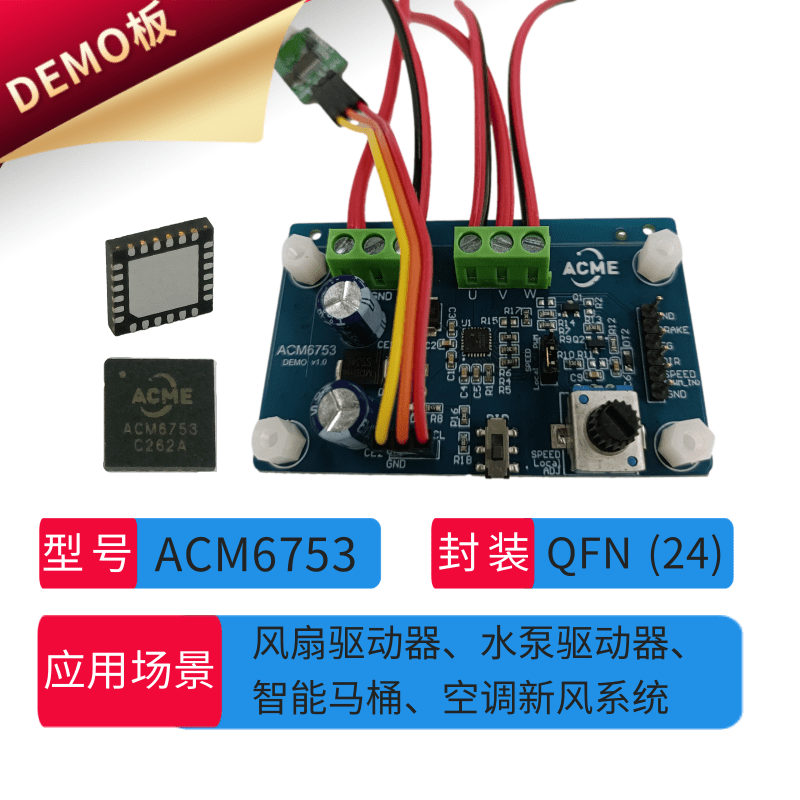

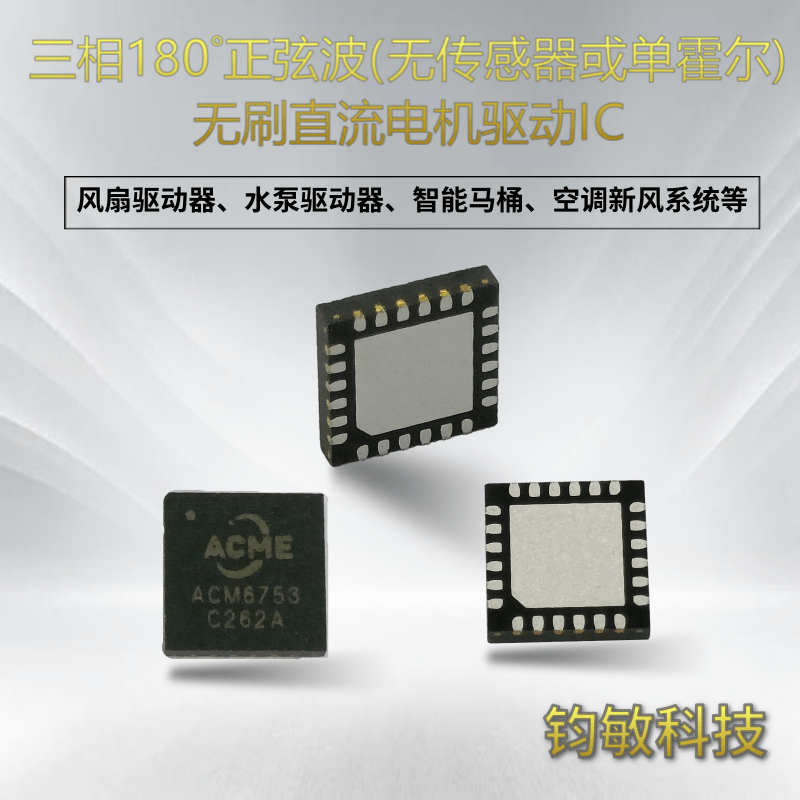

Three-Phase Brushless DC Motor Driver IC
Brand: Acme-Semi
Model: ACM6753
Peak Current: 3.2A
Operating Voltage: 12V
Input Voltage Range: 5V - 18V
Power: 30-40W
Package: QFN(24)
Features: Supports reverse wind startup, built-in sampling resistor
Applications: Fan driver, water pump driver, intelligent toilet, air conditioner fresh air system
Application Scenarios
Recommended Products
ZH6358
电机驱动IC 品牌:英能 电压:7V~32V 最大电流:150mA 工作温度:-40℃~150℃ 封装:ETSSOP24 应用:三相水冷显卡散热器、扫地机器人主吸电机、风扇、水泵、三相永磁同步电机
AM7299S
单相全波电机驱动IC 品牌:晶致 电压:18V 最大电流:1.2A 工作温度:-40℃~105℃ 封装:eTSSOP 14L 应用:风扇电机、3080显卡风扇、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
AM7228S
单相全波电机驱动IC 品牌:晶致 电压:18V 最大电流:1.2A 工作温度:-40℃~105℃ 封装:eTSSOP 14L 应用:风扇电机、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
NHE520F
锑化铟(InSb)霍尔元件 品牌:尼赛拉 电压:168mV-428mV 最大电流:20mA 工作温度:-40℃~100℃ 封装:SOT-143 应用:单相水冷显卡散热器、单相风冷显卡散热器、空调室内电机、空调电机控制器、显卡散热风扇
AM8935
三相无感直流风扇电机驱动IC 品牌:晶致 工作电压:3V-16V 峰值电流:1200mA 工作温度:-40℃~95°C 封装:DFN 5x4-14L 产品应用:显卡风扇/水冷散热泵/扫地机器人
MS39531
Sinusoidal Three-Phase Sensorless DC Motor Driver IC Brand: RM Semiconductor Operating Voltage: 4.5-16V, Typical Voltage 12V Peak Current: Up to 3A Key Features: Quiet Operation Sensorless Sinusoidal Wave Startup Low Rdson MOSFET (High-Side + Low-Side: 200mΩ) Speed Curves Configurable via EEPROM Multiple Startup Modes & Adjustable Startup Parameters Low Power Consumption Mode Comprehensive Protection Functions: Overcurrent, Overtemperature Protection Undervoltage Lockout (UVLO) Lock Detection Applications: Household Fan Applications, High-Speed Server Fans, etc.
AM7299S
单相全波电机驱动IC 品牌:晶致 电压:18V 最大电流:1.2A 工作温度:-40℃~105℃ 封装:eTSSOP 14L 应用:风扇电机、3080显卡风扇、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
AM7228S
单相全波电机驱动IC 品牌:晶致 电压:18V 最大电流:1.2A 工作温度:-40℃~105℃ 封装:eTSSOP 14L 应用:风扇电机、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
AM2355N
电机驱动IC 品牌:晶致 电压(V):1.8~6.0V 最大电流(mA):1000 工作温度(°C):-40~+125 封装:DFN10 3*3 应用:笔电风扇、电动口罩风扇、电动水阀电机、美容仪器电机、扫地机器人
LD1201
单相直流无刷电机驱动芯片 品牌:乐业达 工作电压范围:3.5V~16V PWM调速:可以通过调整 PWM 信号的占空比进行调速 PWM输入范围:100Hz~100KHz MINSP调速:特别适用于外置温控电阻的散热系统 应用:单相直流无刷马达、单相直流无刷风扇、CPU散热风扇、CPU水冷泵、GPU散热风扇等
MS39531
Sinusoidal Three-Phase Sensorless DC Motor Driver IC Brand: RM Semiconductor Operating Voltage: 4.5-16V, Typical Voltage 12V Peak Current: Up to 3A Key Features: Quiet Operation Sensorless Sinusoidal Wave Startup Low Rdson MOSFET (High-Side + Low-Side: 200mΩ) Speed Curves Configurable via EEPROM Multiple Startup Modes & Adjustable Startup Parameters Low Power Consumption Mode Comprehensive Protection Functions: Overcurrent, Overtemperature Protection Undervoltage Lockout (UVLO) Lock Detection Applications: Household Fan Applications, High-Speed Server Fans, etc.
ZH5212
电机控制专用32位MCU 品牌:英能 电压:2.8V~5.5V 最高工作频率:96Mhz 工作温度::-40℃~125℃ 封装:SOP24/QFN24 应用:落地扇、洗衣机水泵、智能马桶水泵
ZH6358
电机驱动IC 品牌:英能 电压:7V~32V 最大电流:150mA 工作温度:-40℃~150℃ 封装:ETSSOP24 应用:三相水冷显卡散热器、扫地机器人主吸电机、风扇、水泵、三相永磁同步电机
PT2513B
电机驱动IC 品牌:普诚 电压:6V ~ 16V 最大电流:1A 工作温度:-40℃~125℃ 封装:HTSSOP 产品应用:三相无传感器 BLDC 马达驱动、小型风扇、水泵、冰箱风机、空调水泵
ZH63582
高集成度三相FOC预驱驱动芯片 品牌:英能 工作电压:7V~32V 输出电流(外置 MOS):20A 工作温度:-40°C-150°C 封装:ETSSOP24 和 QFN24 应用:风扇,水泵,除湿机,加湿器,空气净化器,新风系统 等低速电机应用
PT5616
Three-Phase 600V Gate Full-Bridge Driver IC Brand: Puchen Output Current: 200mA-400mA Operating Temperature: -40°C to 125°C Power Supply Voltage: 18V per channel Applications: Dough mixers (kneading machines), blenders, egg beaters, pet dryers, ceiling fans, floor fans, industrial fans, water pumps, treadmills, air conditioner indoor units, juicers, hair suckers, range hoods, fascia guns, etc.
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans, electronic cigarettes, sensor devices, etc.
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
PT2504
Three-Phase Sensorless BLDC Motor Control Chip Brand: Princeton TechnologyVoltage Range: 9V ~ 28V Integrated PNMOS pre-driver 180° sine wave current operation PWM or VSP input open-loop control PWM, VSP or CLK input closed-loop control Maximum speed limit and angle compensation setting Lock-rotor protection, current limiting and overcurrent protection functions Applications: Three-phase sensorless BLDC motor drive, small fans, water pumps, circulating fans, pedestal fans, bathroom heater fans, fan lights, etc.
ACM6754
Three-Phase Brushless DC Motor Driver Chip Brand: Zhisheng Input Voltage Range: 5V - 28V Built-in LDOs: 5V and 3.3V Peak Current: 5A VCC Voltage Detection: I²C Reporting Internal Junction Temperature: I²C Reporting Real-time Phase Current: I²C Reporting On-resistance (High-side + Low-side MOSFETs): 160mΩ, 5A Phase Current Capability Forward/Reverse Control: External DIR Pin or I²C Register Control Applications: Fan motor drives, water/oil pump motor drives, and other variable-load applications such as sweeping robot travel wheels, beauty equipment, etc.
ZH5212
电机控制专用32位MCU 品牌:英能 电压:2.8V~5.5V 最高工作频率:96Mhz 工作温度::-40℃~125℃ 封装:SOP24/QFN24 应用:落地扇、洗衣机水泵、智能马桶水泵
ZH6358
电机驱动IC 品牌:英能 电压:7V~32V 最大电流:150mA 工作温度:-40℃~150℃ 封装:ETSSOP24 应用:三相水冷显卡散热器、扫地机器人主吸电机、风扇、水泵、三相永磁同步电机
PT2513B
电机驱动IC 品牌:普诚 电压:6V ~ 16V 最大电流:1A 工作温度:-40℃~125℃ 封装:HTSSOP 产品应用:三相无传感器 BLDC 马达驱动、小型风扇、水泵、冰箱风机、空调水泵
ZH63582
高集成度三相FOC预驱驱动芯片 品牌:英能 工作电压:7V~32V 输出电流(外置 MOS):20A 工作温度:-40°C-150°C 封装:ETSSOP24 和 QFN24 应用:风扇,水泵,除湿机,加湿器,空气净化器,新风系统 等低速电机应用
PT5616
Three-Phase 600V Gate Full-Bridge Driver IC Brand: Puchen Output Current: 200mA-400mA Operating Temperature: -40°C to 125°C Power Supply Voltage: 18V per channel Applications: Dough mixers (kneading machines), blenders, egg beaters, pet dryers, ceiling fans, floor fans, industrial fans, water pumps, treadmills, air conditioner indoor units, juicers, hair suckers, range hoods, fascia guns, etc.
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans, electronic cigarettes, sensor devices, etc.
PT5619
90V Half-Bridge Gate Driver IC Brand: Pucheng Compatible with three logic levels: 3.3V, 5V, 15V Sink/source current: 1200mA/2000mA Operating temperature: -40℃ to 125℃ Small-size packages: TSSOP20L/24L, QFN24 Applications: Power tools: Electric drills, electric saws, angle grinders, etc. Home appliance field: Three-phase motor drive for air conditioners and washing machines; strong anti-interference capability ensures stable operation of home appliances. New energy products: Balance bikes, electric scooters, small energy storage inverters; low-power consumption adapts to battery-powered scenarios, and wide-temperature design copes with outdoor environments. Industrial control: Three-phase servo motor drive and industrial inverters; stable operation in complex industrial environments, reducing equipment failures.
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
PT2504
Three-Phase Sensorless BLDC Motor Control Chip Brand: Princeton TechnologyVoltage Range: 9V ~ 28V Integrated PNMOS pre-driver 180° sine wave current operation PWM or VSP input open-loop control PWM, VSP or CLK input closed-loop control Maximum speed limit and angle compensation setting Lock-rotor protection, current limiting and overcurrent protection functions Applications: Three-phase sensorless BLDC motor drive, small fans, water pumps, circulating fans, pedestal fans, bathroom heater fans, fan lights, etc.
PT2E01MA
MCU Brand: Princeton Technology Core – ARM® 32-bit Cortex®-M0 MCU – Maximum frequency: 80 MHz – System performance: 0.846 DMIPS/MHz (Dhrystone 2.1, zero-wait state) Memory Units – 64K bytes Flash – 8K bytes SRAM
ACM6754
Three-Phase Brushless DC Motor Driver Chip Brand: Zhisheng Input Voltage Range: 5V - 28V Built-in LDOs: 5V and 3.3V Peak Current: 5A VCC Voltage Detection: I²C Reporting Internal Junction Temperature: I²C Reporting Real-time Phase Current: I²C Reporting On-resistance (High-side + Low-side MOSFETs): 160mΩ, 5A Phase Current Capability Forward/Reverse Control: External DIR Pin or I²C Register Control Applications: Fan motor drives, water/oil pump motor drives, and other variable-load applications such as sweeping robot travel wheels, beauty equipment, etc.
ZH6358
电机驱动IC 品牌:英能 电压:7V~32V 最大电流:150mA 工作温度:-40℃~150℃ 封装:ETSSOP24 应用:三相水冷显卡散热器、扫地机器人主吸电机、风扇、水泵、三相永磁同步电机
PT2513B
电机驱动IC 品牌:普诚 电压:6V ~ 16V 最大电流:1A 工作温度:-40℃~125℃ 封装:HTSSOP 产品应用:三相无传感器 BLDC 马达驱动、小型风扇、水泵、冰箱风机、空调水泵
ZH63582
高集成度三相FOC预驱驱动芯片 品牌:英能 工作电压:7V~32V 输出电流(外置 MOS):20A 工作温度:-40°C-150°C 封装:ETSSOP24 和 QFN24 应用:风扇,水泵,除湿机,加湿器,空气净化器,新风系统 等低速电机应用
PT5616
Three-Phase 600V Gate Full-Bridge Driver IC Brand: Puchen Output Current: 200mA-400mA Operating Temperature: -40°C to 125°C Power Supply Voltage: 18V per channel Applications: Dough mixers (kneading machines), blenders, egg beaters, pet dryers, ceiling fans, floor fans, industrial fans, water pumps, treadmills, air conditioner indoor units, juicers, hair suckers, range hoods, fascia guns, etc.
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans, electronic cigarettes, sensor devices, etc.
PT5619
90V Half-Bridge Gate Driver IC Brand: Pucheng Compatible with three logic levels: 3.3V, 5V, 15V Sink/source current: 1200mA/2000mA Operating temperature: -40℃ to 125℃ Small-size packages: TSSOP20L/24L, QFN24 Applications: Power tools: Electric drills, electric saws, angle grinders, etc. Home appliance field: Three-phase motor drive for air conditioners and washing machines; strong anti-interference capability ensures stable operation of home appliances. New energy products: Balance bikes, electric scooters, small energy storage inverters; low-power consumption adapts to battery-powered scenarios, and wide-temperature design copes with outdoor environments. Industrial control: Three-phase servo motor drive and industrial inverters; stable operation in complex industrial environments, reducing equipment failures.
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
PT2504
Three-Phase Sensorless BLDC Motor Control Chip Brand: Princeton TechnologyVoltage Range: 9V ~ 28V Integrated PNMOS pre-driver 180° sine wave current operation PWM or VSP input open-loop control PWM, VSP or CLK input closed-loop control Maximum speed limit and angle compensation setting Lock-rotor protection, current limiting and overcurrent protection functions Applications: Three-phase sensorless BLDC motor drive, small fans, water pumps, circulating fans, pedestal fans, bathroom heater fans, fan lights, etc.
PT2E01MA
MCU Brand: Princeton Technology Core – ARM® 32-bit Cortex®-M0 MCU – Maximum frequency: 80 MHz – System performance: 0.846 DMIPS/MHz (Dhrystone 2.1, zero-wait state) Memory Units – 64K bytes Flash – 8K bytes SRAM
ACM6754
Three-Phase Brushless DC Motor Driver Chip Brand: Zhisheng Input Voltage Range: 5V - 28V Built-in LDOs: 5V and 3.3V Peak Current: 5A VCC Voltage Detection: I²C Reporting Internal Junction Temperature: I²C Reporting Real-time Phase Current: I²C Reporting On-resistance (High-side + Low-side MOSFETs): 160mΩ, 5A Phase Current Capability Forward/Reverse Control: External DIR Pin or I²C Register Control Applications: Fan motor drives, water/oil pump motor drives, and other variable-load applications such as sweeping robot travel wheels, beauty equipment, etc.
Product Description
Introduction to ACM6753:
ACM6753 is a three-phase brushless DC (BLDC) motor driver IC that integrates a sensorless three-phase BLDC motor driving algorithm, phase current detection circuit, gate driver circuit, and power MOSFETs internally. It supports a maximum phase current of 3.2A.
With its high integration and simplified peripheral design, the ACM6753 is particularly suitable for three-phase BLDC motor driver applications requiring high power density, small size, and strict low-noise requirements.
The ACM6753 supports 180° sinusoidal driving, which effectively avoids electromagnetic noise interference caused by high-order harmonics.
It can achieve efficient startup, acceleration, and constant-speed operation based on motor parameters provided by the user. User parameters can be permanently fixed via programming (hardware mode, internal EFUSE programming) or controlled online through I²C (software mode, parameter initialization or online control via I²C registers).
The ACM6753 offers multiple speed control methods: external PWM duty cycle speed regulation, external analog voltage speed regulation, I²C register speed regulation, and external PWM frequency speed regulation.
To protect both the ACM6753 itself and the external motor, the chip is equipped with a variety of protection mechanisms.



Pin Definition and Pin Function Description of ACM6753:



Applications of ACM6753:

  • Fan motor drives

  • Water pump motor drives

  • Other applications with relatively constant loads



Product Features
Input Voltage Range: 5V - 18V
On-Resistance (High-Side + Low-Side): 200mΩ, 3.2A Phase Current Capability
180° Sinusoidal Driving with Ultra-Low Noise
Sensorless or Single Hall Driving, No External Current Sensing Resistor Required
Built-in 5V and 3.3V LDOs
FG Speed Indicator Signal (Electrical Cycle or Mechanical Cycle, Divider Ratio Configurable)
Brake Control
  • External Brake via BRAKE Pin

  • I²C Interface: Brake Control through Registers

    4 Flexible Speed Control Methods

  • Dedicated SPEED Pin: Accepts External Analog Voltage Speed Regulation, PWM Duty Cycle Speed Regulation, or Clock Speed Regulation

  • Speed Regulation via I²C Registers

    Protection Functions

  • Over-Current Protection (OCP)

  • Locked-Rotor Protection

  • Over-Voltage/Under-Voltage Protection (OVP/UVP)

  • Over-Temperature Protection (OTP)

  • Voltage Anti-Backflow (Anti-Overshoot) Mechanism

    Quiescent Current (Standby Mode): 150μA, Achieved by Setting I²C Speed Command to Zero and External SPEED Pin Voltage to Zero

    Quiescent Current (Sleep Mode): 20μA, Wake-Up by Increasing External SPEED Pin Voltage
