ACM6731
phone 0755-2810 2601
Three-Phase BLDC Motor Driver Chip
Brand: Zhisheng
Input Voltage: 2.7V - 16V
On-resistance (High-side + Low-side): 300mΩ, Peak Phase Current: 2.4A
180° sinusoidal drive for ultra-low noise; square wave drive for high torque.
No external current sense resistor required for sensorless drive mode
Built-in 5V LDO
Applications: Computer cooling fans, household ventilation equipment, industrial fans, automotive water pumps, domestic water pumps, power tools, small home appliances, robot joints
Consult Now Download Sheet
Application Scenarios
智能马桶水泵 智能马桶水泵
智能马桶水泵
汽车水泵电机 汽车水泵电机
汽车水泵电机
洗衣机水泵 洗衣机水泵
洗衣机水泵
空调排水泵 空调排水泵
空调排水泵
GPU散热风扇 GPU散热风扇
GPU散热风扇
CUP散热风扇 CUP散热风扇
CUP散热风扇
Recommended Products
ZH5212
电机控制专用32位MCU 品牌：英能 电压：2.8V～5.5V 最高工作频率:96Mhz 工作温度：:-40℃～125℃ 封装：SOP24/QFN24 应用：落地扇、洗衣机水泵、智能马桶水泵
ZH6358
电机驱动IC 品牌：英能 电压：7V~32V 最大电流：150mA 工作温度：-40℃~150℃ 封装：ETSSOP24 应用：三相水冷显卡散热器、扫地机器人主吸电机、风扇、水泵、三相永磁同步电机
PT2513B
电机驱动IC 品牌：普诚 电压：6V ~ 16V 最大电流：1A 工作温度：-40℃~125℃ 封装：HTSSOP 产品应用：三相无传感器 BLDC 马达驱动、小型风扇、水泵、冰箱风机、空调水泵
ZH63582
高集成度三相FOC预驱驱动芯片 品牌：英能 工作电压：7V~32V 输出电流（外置 MOS）：20A 工作温度：-40°C-150°C 封装：ETSSOP24 和 QFN24 应用：风扇，水泵，除湿机，加湿器，空气净化器，新风系统 等低速电机应用
PT5616
Three-Phase 600V Gate Full-Bridge Driver IC Brand: Puchen Output Current: 200mA-400mA Operating Temperature: -40°C to 125°C Power Supply Voltage: 18V per channel Applications: Dough mixers (kneading machines), blenders, egg beaters, pet dryers, ceiling fans, floor fans, industrial fans, water pumps, treadmills, air conditioner indoor units, juicers, hair suckers, range hoods, fascia guns, etc.
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans， electronic cigarettes, sensor devices, etc.
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
PT2504
Three-Phase Sensorless BLDC Motor Control Chip Brand: Princeton TechnologyVoltage Range: 9V ~ 28V Integrated PNMOS pre-driver 180° sine wave current operation PWM or VSP input open-loop control PWM, VSP or CLK input closed-loop control Maximum speed limit and angle compensation setting Lock-rotor protection, current limiting and overcurrent protection functions Applications: Three-phase sensorless BLDC motor drive, small fans, water pumps, circulating fans, pedestal fans, bathroom heater fans, fan lights, etc.
ACM6753
Three-Phase Brushless DC Motor Driver IC Brand: Acme-Semi Model: ACM6753 Peak Current: 3.2A Operating Voltage: 12V Input Voltage Range: 5V - 18V Power: 30-40W Package: QFN(24) Features: Supports reverse wind startup, built-in sampling resistor Applications: Fan driver, water pump driver, intelligent toilet, air conditioner fresh air system
ACM6754
Three-Phase Brushless DC Motor Driver Chip Brand: Zhisheng Input Voltage Range: 5V - 28V Built-in LDOs: 5V and 3.3V Peak Current: 5A VCC Voltage Detection: I²C Reporting Internal Junction Temperature: I²C Reporting Real-time Phase Current: I²C Reporting On-resistance (High-side + Low-side MOSFETs): 160mΩ, 5A Phase Current Capability Forward/Reverse Control: External DIR Pin or I²C Register Control Applications: Fan motor drives, water/oil pump motor drives, and other variable-load applications such as sweeping robot travel wheels, beauty equipment, etc.
ACM6252
Single-Phase BLDC Motor Driver IC Brand: Zhisheng Supply voltage range: 3.3V – 18V Continuous output phase current capability: 1.2A On-resistance of integrated Power FETs: 500mΩ LS, 500mΩ HS Speed profile (multi-segment slope selectable; minimum and maximum speeds adjustable) Soft start with no inrush current overshoot Sine-wave or square-wave drive, user-configurable Flexible speed control modes (customer-selectable): Analog voltage PWM (duty cycle or frequency) Applications: DC cooling fans (server, home appliance, industrial control, automotive), small water pumps (water cooling, humidification, water circulation), low-noise single-phase BLDC motor modules.
ACM6732
Three-Phase BLDC Motor Driver IC Brand: Zhisheng Input Voltage Range: 2.7V – 16V On-resistance (High-side + Low-side): 300mΩ, peak phase current up to 2.4A 180° sinusoidal drive for ultra-low noise; square-wave drive available for high torque. No external current sense resistor required in sensorless drive mode. Built-in 5V LDO. Applications: cooling & ventilation fans, water pumps, small home appliance motors, automotive and portable devices.
KF32A146
车规级32位MCU微控制器 品牌：领芯微 电压：2.7V～5.5V 最大电流：800mA 工作温度：-40～+125℃ 封装：LQFP48/LQFP64 应用：汽车水泵电机、汽车门窗电机控制器、汽车冰箱压塑机控制器、汽车大灯控制器、汽车尾灯控制器、汽车氛围灯控制器
KF8A100
单片机8位微控制器（MCU） 品牌：芯旺微 电压：2.1V～5.5V 工作温度：-40℃～125℃ 封装：TSSOP/SOP 应用：汽车座椅散热风扇、汽车单相水泵电机、汽车头枕按摩电机、汽车座椅按摩控制器
PT2E01MA
MCU Brand: Princeton Technology Core – ARM® 32-bit Cortex®-M0 MCU – Maximum frequency: 80 MHz – System performance: 0.846 DMIPS/MHz (Dhrystone 2.1, zero-wait state) Memory Units – 64K bytes Flash – 8K bytes SRAM
ACM6732
Three-Phase BLDC Motor Driver IC Brand: Zhisheng Input Voltage Range: 2.7V – 16V On-resistance (High-side + Low-side): 300mΩ, peak phase current up to 2.4A 180° sinusoidal drive for ultra-low noise; square-wave drive available for high torque. No external current sense resistor required in sensorless drive mode. Built-in 5V LDO. Applications: cooling & ventilation fans, water pumps, small home appliance motors, automotive and portable devices.
ZH5212
电机控制专用32位MCU 品牌：英能 电压：2.8V～5.5V 最高工作频率:96Mhz 工作温度：:-40℃～125℃ 封装：SOP24/QFN24 应用：落地扇、洗衣机水泵、智能马桶水泵
ZH6358
电机驱动IC 品牌：英能 电压：7V~32V 最大电流：150mA 工作温度：-40℃~150℃ 封装：ETSSOP24 应用：三相水冷显卡散热器、扫地机器人主吸电机、风扇、水泵、三相永磁同步电机
PT2513B
电机驱动IC 品牌：普诚 电压：6V ~ 16V 最大电流：1A 工作温度：-40℃~125℃ 封装：HTSSOP 产品应用：三相无传感器 BLDC 马达驱动、小型风扇、水泵、冰箱风机、空调水泵
ZH63582
高集成度三相FOC预驱驱动芯片 品牌：英能 工作电压：7V~32V 输出电流（外置 MOS）：20A 工作温度：-40°C-150°C 封装：ETSSOP24 和 QFN24 应用：风扇，水泵，除湿机，加湿器，空气净化器，新风系统 等低速电机应用
PT5616
Three-Phase 600V Gate Full-Bridge Driver IC Brand: Puchen Output Current: 200mA-400mA Operating Temperature: -40°C to 125°C Power Supply Voltage: 18V per channel Applications: Dough mixers (kneading machines), blenders, egg beaters, pet dryers, ceiling fans, floor fans, industrial fans, water pumps, treadmills, air conditioner indoor units, juicers, hair suckers, range hoods, fascia guns, etc.
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans， electronic cigarettes, sensor devices, etc.
PT5619
90V Half-Bridge Gate Driver IC Brand: Pucheng Compatible with three logic levels: 3.3V, 5V, 15V Sink/source current: 1200mA/2000mA Operating temperature: -40℃ to 125℃ Small-size packages: TSSOP20L/24L, QFN24 Applications: Power tools: Electric drills, electric saws, angle grinders, etc. Home appliance field: Three-phase motor drive for air conditioners and washing machines; strong anti-interference capability ensures stable operation of home appliances. New energy products: Balance bikes, electric scooters, small energy storage inverters; low-power consumption adapts to battery-powered scenarios, and wide-temperature design copes with outdoor environments. Industrial control: Three-phase servo motor drive and industrial inverters; stable operation in complex industrial environments, reducing equipment failures.
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
PT2504
Three-Phase Sensorless BLDC Motor Control Chip Brand: Princeton TechnologyVoltage Range: 9V ~ 28V Integrated PNMOS pre-driver 180° sine wave current operation PWM or VSP input open-loop control PWM, VSP or CLK input closed-loop control Maximum speed limit and angle compensation setting Lock-rotor protection, current limiting and overcurrent protection functions Applications: Three-phase sensorless BLDC motor drive, small fans, water pumps, circulating fans, pedestal fans, bathroom heater fans, fan lights, etc.
PT2E01MA
MCU Brand: Princeton Technology Core – ARM® 32-bit Cortex®-M0 MCU – Maximum frequency: 80 MHz – System performance: 0.846 DMIPS/MHz (Dhrystone 2.1, zero-wait state) Memory Units – 64K bytes Flash – 8K bytes SRAM
ACM6753
Three-Phase Brushless DC Motor Driver IC Brand: Acme-Semi Model: ACM6753 Peak Current: 3.2A Operating Voltage: 12V Input Voltage Range: 5V - 18V Power: 30-40W Package: QFN(24) Features: Supports reverse wind startup, built-in sampling resistor Applications: Fan driver, water pump driver, intelligent toilet, air conditioner fresh air system
ACM6754
Three-Phase Brushless DC Motor Driver Chip Brand: Zhisheng Input Voltage Range: 5V - 28V Built-in LDOs: 5V and 3.3V Peak Current: 5A VCC Voltage Detection: I²C Reporting Internal Junction Temperature: I²C Reporting Real-time Phase Current: I²C Reporting On-resistance (High-side + Low-side MOSFETs): 160mΩ, 5A Phase Current Capability Forward/Reverse Control: External DIR Pin or I²C Register Control Applications: Fan motor drives, water/oil pump motor drives, and other variable-load applications such as sweeping robot travel wheels, beauty equipment, etc.
ACM6252
Single-Phase BLDC Motor Driver IC Brand: Zhisheng Supply voltage range: 3.3V – 18V Continuous output phase current capability: 1.2A On-resistance of integrated Power FETs: 500mΩ LS, 500mΩ HS Speed profile (multi-segment slope selectable; minimum and maximum speeds adjustable) Soft start with no inrush current overshoot Sine-wave or square-wave drive, user-configurable Flexible speed control modes (customer-selectable): Analog voltage PWM (duty cycle or frequency) Applications: DC cooling fans (server, home appliance, industrial control, automotive), small water pumps (water cooling, humidification, water circulation), low-noise single-phase BLDC motor modules.
ACM6732
Three-Phase BLDC Motor Driver IC Brand: Zhisheng Input Voltage Range: 2.7V – 16V On-resistance (High-side + Low-side): 300mΩ, peak phase current up to 2.4A 180° sinusoidal drive for ultra-low noise; square-wave drive available for high torque. No external current sense resistor required in sensorless drive mode. Built-in 5V LDO. Applications: cooling & ventilation fans, water pumps, small home appliance motors, automotive and portable devices.
ZH6358
电机驱动IC 品牌：英能 电压：7V~32V 最大电流：150mA 工作温度：-40℃~150℃ 封装：ETSSOP24 应用：三相水冷显卡散热器、扫地机器人主吸电机、风扇、水泵、三相永磁同步电机
PT2513B
电机驱动IC 品牌：普诚 电压：6V ~ 16V 最大电流：1A 工作温度：-40℃~125℃ 封装：HTSSOP 产品应用：三相无传感器 BLDC 马达驱动、小型风扇、水泵、冰箱风机、空调水泵
ZH63582
高集成度三相FOC预驱驱动芯片 品牌：英能 工作电压：7V~32V 输出电流（外置 MOS）：20A 工作温度：-40°C-150°C 封装：ETSSOP24 和 QFN24 应用：风扇，水泵，除湿机，加湿器，空气净化器，新风系统 等低速电机应用
PT5616
Three-Phase 600V Gate Full-Bridge Driver IC Brand: Puchen Output Current: 200mA-400mA Operating Temperature: -40°C to 125°C Power Supply Voltage: 18V per channel Applications: Dough mixers (kneading machines), blenders, egg beaters, pet dryers, ceiling fans, floor fans, industrial fans, water pumps, treadmills, air conditioner indoor units, juicers, hair suckers, range hoods, fascia guns, etc.
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans， electronic cigarettes, sensor devices, etc.
PT5619
90V Half-Bridge Gate Driver IC Brand: Pucheng Compatible with three logic levels: 3.3V, 5V, 15V Sink/source current: 1200mA/2000mA Operating temperature: -40℃ to 125℃ Small-size packages: TSSOP20L/24L, QFN24 Applications: Power tools: Electric drills, electric saws, angle grinders, etc. Home appliance field: Three-phase motor drive for air conditioners and washing machines; strong anti-interference capability ensures stable operation of home appliances. New energy products: Balance bikes, electric scooters, small energy storage inverters; low-power consumption adapts to battery-powered scenarios, and wide-temperature design copes with outdoor environments. Industrial control: Three-phase servo motor drive and industrial inverters; stable operation in complex industrial environments, reducing equipment failures.
PT2E01Z1
100V Three-Phase Gate Driver Chip Brand: Princeton Technology Core: ARM Cortex-M0, up to 80MHz, 64KB Flash + 8KB SRAM Integration: 100V three-phase gate driver + hardware-level protection functions Control: 11 sets of timers, 22-channel PWM, 12-bit ADC + operational amplifier Compatibility: Wide voltage supply (1.8-5.5V for MCU / 10-20V for driver), supports I2C/SPI/UART Features: 5 low-power modes (0.12μA in shutdown mode), wide temperature range (-40~125℃), strong EMC/ESD protection Additional: Arithmetic accelerator, CRC check, code protection Applications: Dough mixers (dough kneading machines); power tools: motor drive control for handheld electric devices such as electric drills, electric saws, grinders, etc.
PT2504
Three-Phase Sensorless BLDC Motor Control Chip Brand: Princeton TechnologyVoltage Range: 9V ~ 28V Integrated PNMOS pre-driver 180° sine wave current operation PWM or VSP input open-loop control PWM, VSP or CLK input closed-loop control Maximum speed limit and angle compensation setting Lock-rotor protection, current limiting and overcurrent protection functions Applications: Three-phase sensorless BLDC motor drive, small fans, water pumps, circulating fans, pedestal fans, bathroom heater fans, fan lights, etc.
PT2E01MA
MCU Brand: Princeton Technology Core – ARM® 32-bit Cortex®-M0 MCU – Maximum frequency: 80 MHz – System performance: 0.846 DMIPS/MHz (Dhrystone 2.1, zero-wait state) Memory Units – 64K bytes Flash – 8K bytes SRAM
ACM6753
Three-Phase Brushless DC Motor Driver IC Brand: Acme-Semi Model: ACM6753 Peak Current: 3.2A Operating Voltage: 12V Input Voltage Range: 5V - 18V Power: 30-40W Package: QFN(24) Features: Supports reverse wind startup, built-in sampling resistor Applications: Fan driver, water pump driver, intelligent toilet, air conditioner fresh air system
ACM6754
Three-Phase Brushless DC Motor Driver Chip Brand: Zhisheng Input Voltage Range: 5V - 28V Built-in LDOs: 5V and 3.3V Peak Current: 5A VCC Voltage Detection: I²C Reporting Internal Junction Temperature: I²C Reporting Real-time Phase Current: I²C Reporting On-resistance (High-side + Low-side MOSFETs): 160mΩ, 5A Phase Current Capability Forward/Reverse Control: External DIR Pin or I²C Register Control Applications: Fan motor drives, water/oil pump motor drives, and other variable-load applications such as sweeping robot travel wheels, beauty equipment, etc.
ACM6252
Single-Phase BLDC Motor Driver IC Brand: Zhisheng Supply voltage range: 3.3V – 18V Continuous output phase current capability: 1.2A On-resistance of integrated Power FETs: 500mΩ LS, 500mΩ HS Speed profile (multi-segment slope selectable; minimum and maximum speeds adjustable) Soft start with no inrush current overshoot Sine-wave or square-wave drive, user-configurable Flexible speed control modes (customer-selectable): Analog voltage PWM (duty cycle or frequency) Applications: DC cooling fans (server, home appliance, industrial control, automotive), small water pumps (water cooling, humidification, water circulation), low-noise single-phase BLDC motor modules.
ACM6732
Three-Phase BLDC Motor Driver IC Brand: Zhisheng Input Voltage Range: 2.7V – 16V On-resistance (High-side + Low-side): 300mΩ, peak phase current up to 2.4A 180° sinusoidal drive for ultra-low noise; square-wave drive available for high torque. No external current sense resistor required in sensorless drive mode. Built-in 5V LDO. Applications: cooling & ventilation fans, water pumps, small home appliance motors, automotive and portable devices.
AM7299S
单相全波电机驱动IC 品牌：晶致 电压：18V 最大电流：1.2A 工作温度：-40℃~105℃ 封装：eTSSOP 14L 应用：风扇电机、3080显卡风扇、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
AM7228S
单相全波电机驱动IC 品牌：晶致 电压：18V 最大电流：1.2A 工作温度：-40℃~105℃ 封装：eTSSOP 14L 应用：风扇电机、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
LD1201
单相直流无刷电机驱动芯片 品牌：乐业达 工作电压范围：3.5V~16V PWM调速：可以通过调整 PWM 信号的占空比进行调速 PWM输入范围：100Hz~100KHz MINSP调速：特别适用于外置温控电阻的散热系统 应用：单相直流无刷马达、单相直流无刷风扇、CPU散热风扇、CPU水冷泵、GPU散热风扇等
MS39531
Sinusoidal Three-Phase Sensorless DC Motor Driver IC Brand: RM Semiconductor Operating Voltage: 4.5-16V, Typical Voltage 12V Peak Current: Up to 3A Key Features: Quiet Operation Sensorless Sinusoidal Wave Startup Low Rdson MOSFET (High-Side + Low-Side: 200mΩ) Speed Curves Configurable via EEPROM Multiple Startup Modes & Adjustable Startup Parameters Low Power Consumption Mode Comprehensive Protection Functions: Overcurrent, Overtemperature Protection Undervoltage Lockout (UVLO) Lock Detection Applications: Household Fan Applications, High-Speed Server Fans, etc.
ACM6753
Three-Phase Brushless DC Motor Driver IC Brand: Acme-Semi Model: ACM6753 Peak Current: 3.2A Operating Voltage: 12V Input Voltage Range: 5V - 18V Power: 30-40W Package: QFN(24) Features: Supports reverse wind startup, built-in sampling resistor Applications: Fan driver, water pump driver, intelligent toilet, air conditioner fresh air system
ACM6252
Single-Phase BLDC Motor Driver IC Brand: Zhisheng Supply voltage range: 3.3V – 18V Continuous output phase current capability: 1.2A On-resistance of integrated Power FETs: 500mΩ LS, 500mΩ HS Speed profile (multi-segment slope selectable; minimum and maximum speeds adjustable) Soft start with no inrush current overshoot Sine-wave or square-wave drive, user-configurable Flexible speed control modes (customer-selectable): Analog voltage PWM (duty cycle or frequency) Applications: DC cooling fans (server, home appliance, industrial control, automotive), small water pumps (water cooling, humidification, water circulation), low-noise single-phase BLDC motor modules.
ACM6732
Three-Phase BLDC Motor Driver IC Brand: Zhisheng Input Voltage Range: 2.7V – 16V On-resistance (High-side + Low-side): 300mΩ, peak phase current up to 2.4A 180° sinusoidal drive for ultra-low noise; square-wave drive available for high torque. No external current sense resistor required in sensorless drive mode. Built-in 5V LDO. Applications: cooling & ventilation fans, water pumps, small home appliance motors, automotive and portable devices.
AM7228S
单相全波电机驱动IC 品牌：晶致 电压：18V 最大电流：1.2A 工作温度：-40℃~105℃ 封装：eTSSOP 14L 应用：风扇电机、显卡散热风扇、一般消费设备驱动12V风扇的最佳方案
LD1201
单相直流无刷电机驱动芯片 品牌：乐业达 工作电压范围：3.5V~16V PWM调速：可以通过调整 PWM 信号的占空比进行调速 PWM输入范围：100Hz~100KHz MINSP调速：特别适用于外置温控电阻的散热系统 应用：单相直流无刷马达、单相直流无刷风扇、CPU散热风扇、CPU水冷泵、GPU散热风扇等
MS39531
Sinusoidal Three-Phase Sensorless DC Motor Driver IC Brand: RM Semiconductor Operating Voltage: 4.5-16V, Typical Voltage 12V Peak Current: Up to 3A Key Features: Quiet Operation Sensorless Sinusoidal Wave Startup Low Rdson MOSFET (High-Side + Low-Side: 200mΩ) Speed Curves Configurable via EEPROM Multiple Startup Modes & Adjustable Startup Parameters Low Power Consumption Mode Comprehensive Protection Functions: Overcurrent, Overtemperature Protection Undervoltage Lockout (UVLO) Lock Detection Applications: Household Fan Applications, High-Speed Server Fans, etc.
ACM6753
Three-Phase Brushless DC Motor Driver IC Brand: Acme-Semi Model: ACM6753 Peak Current: 3.2A Operating Voltage: 12V Input Voltage Range: 5V - 18V Power: 30-40W Package: QFN(24) Features: Supports reverse wind startup, built-in sampling resistor Applications: Fan driver, water pump driver, intelligent toilet, air conditioner fresh air system
ACM6252
Single-Phase BLDC Motor Driver IC Brand: Zhisheng Supply voltage range: 3.3V – 18V Continuous output phase current capability: 1.2A On-resistance of integrated Power FETs: 500mΩ LS, 500mΩ HS Speed profile (multi-segment slope selectable; minimum and maximum speeds adjustable) Soft start with no inrush current overshoot Sine-wave or square-wave drive, user-configurable Flexible speed control modes (customer-selectable): Analog voltage PWM (duty cycle or frequency) Applications: DC cooling fans (server, home appliance, industrial control, automotive), small water pumps (water cooling, humidification, water circulation), low-noise single-phase BLDC motor modules.
ACM6732
Three-Phase BLDC Motor Driver IC Brand: Zhisheng Input Voltage Range: 2.7V – 16V On-resistance (High-side + Low-side): 300mΩ, peak phase current up to 2.4A 180° sinusoidal drive for ultra-low noise; square-wave drive available for high torque. No external current sense resistor required in sensorless drive mode. Built-in 5V LDO. Applications: cooling & ventilation fans, water pumps, small home appliance motors, automotive and portable devices.
Product Description

ACM6731 Introduction

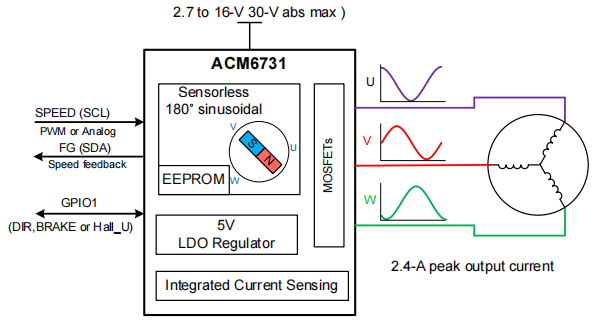

The ACM6731 is a three-phase brushless DC (BLDC) motor driver chip. It integrates a sensorless three-phase BLDC motor drive algorithm, phase current sensing circuit, gate drive circuit and power MOSFETs internally, supporting a maximum phase current of 2.4A.
Featuring high integration and minimal peripheral components, the ACM6731 is especially suitable for three-phase BLDC motor drive applications that require high power density, compact size and ultra-low noise performance.
The ACM6731 supports 180° sinusoidal drive, which effectively eliminates electromagnetic acoustic interference caused by high-order harmonics. It also supports square-wave drive, ideal for applications requiring fast startup and high torque output.
According to the motor parameters configured by users, the ACM6731 can realize reliable motor startup, acceleration, and constant speed or constant voltage operation. User parameters can be permanently stored via one-time programming.
The ACM6731 provides multiple speed control modes, including external PWM duty cycle speed regulation, external analog voltage speed regulation, and external PWM frequency speed regulation.
Built with multiple protection mechanisms, the ACM6731 can protect both the chip itself and the external motor from abnormal operating conditions.



Device Information：


ACM6731 Applications:

Fan Motor Drivers

  • Computer cooling fans

  • Household ventilation equipment

  • Industrial fans

Pump Motor Drivers

  • Automotive water pumps

  • Domestic water pumps

  • Industrial pumps

Other Constant-Load Applications

  • Power tools

  • Small home appliances

  • Robot joints


Product Features

Input Voltage Range: 2.7V - 16V On-resistance (High-side + Low-side): 300 mΩ, with a peak phase current capability of 2.4 A 180° sinusoidal drive for ultra-low noise; or square-wave drive for high torque. No external current-sense resistor is required in sensorless drive mode. Built-in 5V LDO. FG speed indicator signal (electrical cycle or mechanical cycle, with configurable division ratio). 3 flexible speed control modes via dedicated SPEED pin: external analog voltage speed control, PWM duty cycle speed control, or clock speed control. Protection Features: - Over-current protection - Locked-rotor protection - Over-voltage / Under-voltage protection - Over-temperature protection - Anti-reverse voltage (anti-overshoot) mechanism Quiescent Current (Standby Mode): 100 µA Quiescent Current (Sleep Mode): 10 µA
