SMN3004BLR
phone 0755-2810 2601
30V N‑Channel Power MOSFET
Brand: ZJ Semiconductor / ZJ Power Semiconductor
Drain-Source Voltage VDS​: up to 30V
On-Resistance RDS(ON)​:
Max. 4.4mΩ at VGS​=10V
Max. 5.8mΩ at VGS​=4.5V
Operating Temperature: -55℃ ~ +150℃
Applications:
BLDC motor drive for household variable-frequency robotic vacuums
Industrial small stepper motor drivers
Electronic speed controllers (ESC) for drone brushless motors
Consult Now Download Sheet
Application Scenarios
扫地机器人边刷电机 扫地机器人边刷电机
扫地机器人边刷电机
扫地机器人吸尘电机 扫地机器人吸尘电机
扫地机器人吸尘电机
Recommended Products
ZH6332
无刷方波驱动IC 品牌：英能 电压：6V~40V 最大电流：3A 工作温度：-40℃~125℃ 封装：TSSOP20/QFN20 应用：三相永磁同步电机、扫地机器人走路电机、扫路机器人边刷电机
AM2355N
电机驱动IC 品牌：晶致 电压(V):1.8~6.0V 最大电流(mA):1000 工作温度(°C):-40~+125 封装:DFN10 3*3 应用：笔电风扇、电动口罩风扇、电动水阀电机、美容仪器电机、扫地机器人
AM8935
三相无感直流风扇电机驱动IC 品牌:晶致 工作电压:3V-16V 峰值电流:1200mA 工作温度:-40℃~95°C 封装:DFN 5x4-14L 产品应用:显卡风扇/水冷散热泵/扫地机器人
PT3661
霍尔IC 品牌：旺玖 工作电压：2.4V-5.0V 微功率：（5~7uW（典型值）：Vcc=3.0V） 工作温度：-40°C-85°C 封装：VQFN32V 应用：盖探测器、电池供电、手持设备、扫地机器人
LD63006
三相直流无刷电机驱动芯片 品牌：乐业达 工作电压：8V -20V 工作电流：1.5A 温度：-40 to +85°C 封装：VQFN-24 (4mmx4mm) 应用：通用 BLDC 电机、扫地机行走轮电机、扫地机器人边刷、吸尘器行走轮电机、卷发器、水泵、小风扇
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans， electronic cigarettes, sensor devices, etc.
PT2489L
Dual H-Bridge Stepper Motor Driver IC Brand: PTC Supply Voltage: 8V ~ 40V Peak Current: 2.5A (with additional heatsink when VM=24V) Low Switch On-Resistance: 0.4Ω (Typical Value) High-Side + Low-Side at Tj=25℃ Protection Functions: Over-Current Protection (OCP) Thermal Shutdown (TSD) VM Under-Voltage Lockout (UVLO) Fault Indicator Output (FALTN) Applications: Automated Teller Machines (bill counters), video surveillance cameras, printers, scanners, office automation equipment, entertainment equipment, factory automation equipment, robots.
PT5139
Dual H-Bridge Motor Driver IC Brand: Puricome Part Number: MPS6507 Supply Voltage: 2.7V ~ 15V Current: 0.7A Low Quiescent Current: 1.1mA Low Sleep Current: 1μA Thermal Shutdown and Under-Voltage Lockout (UVLO) Protection Over-Current Protection (OCP) Over-Temperature Output Flag Thermally Enhanced Surface-Mount Package Applications: Digital Still Cameras, POS Printers, Video Surveillance Cameras, Smart TV Devices (Lens Lifting), Robots, Battery-Powered Toys
ACM6754
Three-Phase Brushless DC Motor Driver Chip Brand: Zhisheng Input Voltage Range: 5V - 28V Built-in LDOs: 5V and 3.3V Peak Current: 5A VCC Voltage Detection: I²C Reporting Internal Junction Temperature: I²C Reporting Real-time Phase Current: I²C Reporting On-resistance (High-side + Low-side MOSFETs): 160mΩ, 5A Phase Current Capability Forward/Reverse Control: External DIR Pin or I²C Register Control Applications: Fan motor drives, water/oil pump motor drives, and other variable-load applications such as sweeping robot travel wheels, beauty equipment, etc.
ZH6358
电机驱动IC 品牌：英能 电压：7V~32V 最大电流：150mA 工作温度：-40℃~150℃ 封装：ETSSOP24 应用：三相水冷显卡散热器、扫地机器人主吸电机、风扇、水泵、三相永磁同步电机
ZH6332
无刷方波驱动IC 品牌：英能 电压：6V~40V 最大电流：3A 工作温度：-40℃~125℃ 封装：TSSOP20/QFN20 应用：三相永磁同步电机、扫地机器人走路电机、扫路机器人边刷电机
P24C64C
存储器E²PROM 品牌：普冉 最低工作电压低至1.7V 读取电流400uA，最大值 写入电流最大1.0mA 封装：PDIP、SOP、TSSOP、DFN/UDFN和SOT23-5 应用：红外热成像仪、电话座机、扫地机器人、镜头模组
P24C128E
存储器E²PROM 品牌：普冉 最低工作电压低至1.7V 低功耗CMOS技术 读取电流最大100uA 写入电流最大0.5mA 封装：WLCSP 应用：红外热成像仪、电话座机、扫地机器人、镜头模组
AM2355N
电机驱动IC 品牌：晶致 电压(V):1.8~6.0V 最大电流(mA):1000 工作温度(°C):-40~+125 封装:DFN10 3*3 应用：笔电风扇、电动口罩风扇、电动水阀电机、美容仪器电机、扫地机器人
AM8935
三相无感直流风扇电机驱动IC 品牌:晶致 工作电压:3V-16V 峰值电流:1200mA 工作温度:-40℃~95°C 封装:DFN 5x4-14L 产品应用:显卡风扇/水冷散热泵/扫地机器人
GC4931P
三相有感电机驱动IC 品牌：芯麦 电压(V):4.7~36V 最大电流(mA):MOS外置 工作温度(C):-40+150°C 封装:QFN28 应用：筋膜枪电机、扫地机器人电机、吸尘器电机、齿轮箱减速电机
PT3661
霍尔IC 品牌：旺玖 工作电压：2.4V-5.0V 微功率：（5~7uW（典型值）：Vcc=3.0V） 工作温度：-40°C-85°C 封装：VQFN32V 应用：盖探测器、电池供电、手持设备、扫地机器人
PT3621A
单极霍尔开关 品牌：旺玖 工作电压：2.5V~18V 峰值电流：25mA 工作温度：-40°C-150°C 封装：TO-92/SOT-23 应用：电剪刀刀口位置检测 、盖探测器、速度测量、家用电器、家庭安全、VCD/DVD加载器、CD/DVD Rom、扫地机器人（尘盒位置检测）
LD63006
三相直流无刷电机驱动芯片 品牌：乐业达 工作电压：8V -20V 工作电流：1.5A 温度：-40 to +85°C 封装：VQFN-24 (4mmx4mm) 应用：通用 BLDC 电机、扫地机行走轮电机、扫地机器人边刷、吸尘器行走轮电机、卷发器、水泵、小风扇
PY32MD320
Brand: Puya Operating Temperature: -40℃ ~ 105℃ Operating Voltage: 1.7 V ~ 5.5 V Flash Memory: 64 Kbytes Memory: 8 Kbytes SRAM (SRAM: Static Random-Access Memory, a type of high-speed volatile memory) Operating Frequency: 48 MHz (MHz: Megahertz, a unit of frequency) Package: QFN32 (QFN: Quad Flat No-leads, a type of surface-mount package; "32" indicates 32 pins) Applications: Sweeping robots (wheel hub motors), water pumps, power tools, radio-controlled models (RC models), high-speed fans， electronic cigarettes, sensor devices, etc.
PT2489L
Dual H-Bridge Stepper Motor Driver IC Brand: PTC Supply Voltage: 8V ~ 40V Peak Current: 2.5A (with additional heatsink when VM=24V) Low Switch On-Resistance: 0.4Ω (Typical Value) High-Side + Low-Side at Tj=25℃ Protection Functions: Over-Current Protection (OCP) Thermal Shutdown (TSD) VM Under-Voltage Lockout (UVLO) Fault Indicator Output (FALTN) Applications: Automated Teller Machines (bill counters), video surveillance cameras, printers, scanners, office automation equipment, entertainment equipment, factory automation equipment, robots.
PT5139
Dual H-Bridge Motor Driver IC Brand: Puricome Part Number: MPS6507 Supply Voltage: 2.7V ~ 15V Current: 0.7A Low Quiescent Current: 1.1mA Low Sleep Current: 1μA Thermal Shutdown and Under-Voltage Lockout (UVLO) Protection Over-Current Protection (OCP) Over-Temperature Output Flag Thermally Enhanced Surface-Mount Package Applications: Digital Still Cameras, POS Printers, Video Surveillance Cameras, Smart TV Devices (Lens Lifting), Robots, Battery-Powered Toys
ACM6754
Three-Phase Brushless DC Motor Driver Chip Brand: Zhisheng Input Voltage Range: 5V - 28V Built-in LDOs: 5V and 3.3V Peak Current: 5A VCC Voltage Detection: I²C Reporting Internal Junction Temperature: I²C Reporting Real-time Phase Current: I²C Reporting On-resistance (High-side + Low-side MOSFETs): 160mΩ, 5A Phase Current Capability Forward/Reverse Control: External DIR Pin or I²C Register Control Applications: Fan motor drives, water/oil pump motor drives, and other variable-load applications such as sweeping robot travel wheels, beauty equipment, etc.
Product Description

SMN3004BLR Introduction：

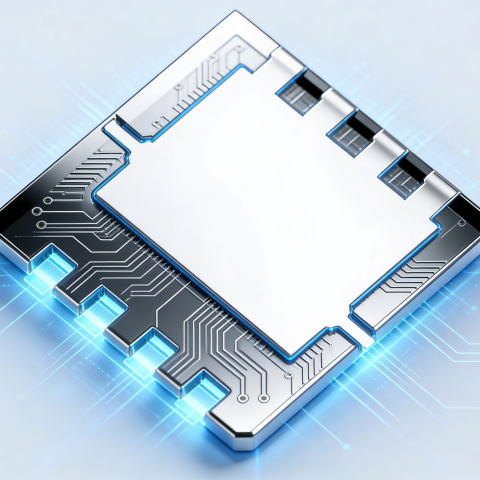

SMN3004BLR is a 30V N-channel power MOSFET in PDFN3333-8L package, marked as N3004BL, supplied in 13-inch tape-and-reel packaging with 5000pcs per reel.
This device features excellent core specifications: maximum on-resistance of only 4.4mΩ at VGS=10V and 5.8mΩ at VGS=4.5V. Continuous drain current reaches 67A at 25℃, with pulsed drain current up to 268A.
It complies with environmental and safety standards including halogen-free and UL 94V-0 flammability rating, and has a moisture sensitivity level of 1. It is suitable for miniaturized, high-reliability design requirements in various high-performance power application scenarios.

SMN3004BLRApplications

Motor Drive:Featuring low on-resistance, high current capability and excellent switching performance, it is suitable for drive and control of various small and medium-power motors, such as industrial micro motors and automotive small motors.

Lithium Battery Protection:With 30V voltage rating, high current rating and stable electrical performance, it can serve as the core power device in lithium battery protection boards, providing overcurrent and overvoltage protection for lithium battery packs in consumer electronics, automotive energy storage and portable devices.

High-Performance Power Management:Widely used in various applications requiring high-efficiency power conversion, voltage regulation and current stabilization. It is especially ideal for automotive electronics (such as automotive USB fast-charging modules and center console power modules), meeting flame-retardant, impact-resistant and voltage fluctuation tolerance requirements in automotive environments. It is also suitable for power conversion circuits in consumer electronics fast chargers, industrial power supplies and portable energy storage devices.


Product Features

Low On‑Resistance

Max. RDS(ON)=4.4mΩ at VGS=10V, ID=20A;

Max. RDS(ON)=5.8mΩ at VGS=4.5V, ID=15A.

Low power loss and high conversion efficiency.

Excellent Performance Specifications

Features outstanding Figure of Merit (FoM).

100% tested for single-pulse avalanche energy (UIS) and gate resistance (Rg).

Avalanche energy: 194mJ, avalanche current: 35A, providing strong surge immunity.

Stable Electrical Characteristics

Gate threshold voltage: 1.0~2.0V.

Fast switching speed: turn-on delay 7.5ns, turn-off delay 48ns.

Low gate charge: Qg=46nC at VGS=10V, Qg=22nC at VGS=4.5V, with excellent dynamic response.

Wide operating and storage temperature range: -55℃ ~ +150℃, suitable for complex temperature-varying environments.

High Reliability & Durability

Low junction-to-case thermal resistance (max. 3.9℃/W) with excellent heat dissipation.

Max. power dissipation: 32W at 25℃.

Supports current and power derating over a wide temperature range with a large safe operating area (SOA).

Withstands harsh conditions such as automotive vibration and voltage fluctuations.

Environmental & Safety Compliance

Green molding compound with halogen-free design.

UL flammability rating: 94V-0, meeting safety requirements for automotive and other electronic equipment.

Moisture Sensitivity Level: 1, ensuring good compatibility for storage and soldering.

Miniaturized Package

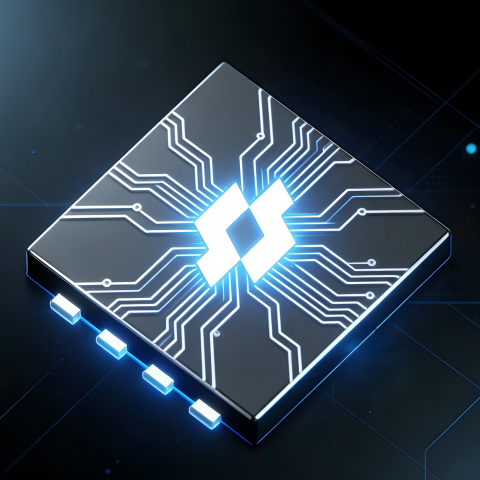

PDFN3333-8L compact package (nominal 3.3×3.35mm), ideal for limited installation space.

Pin configuration: 4D+3S+1G, rationally arranged for easy circuit integration.
